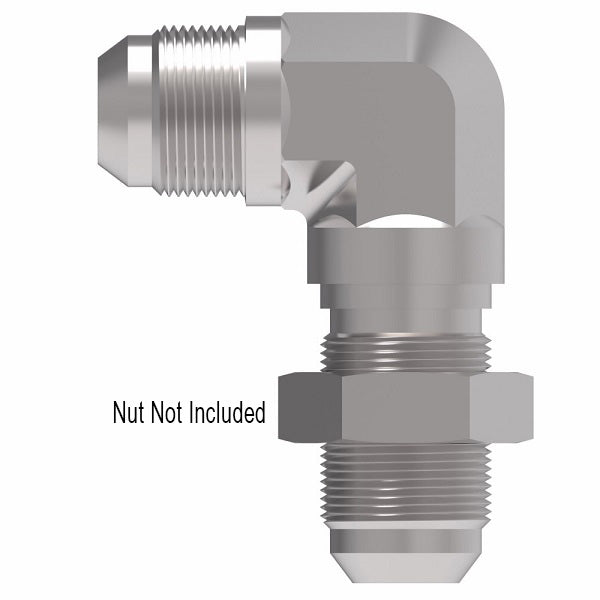

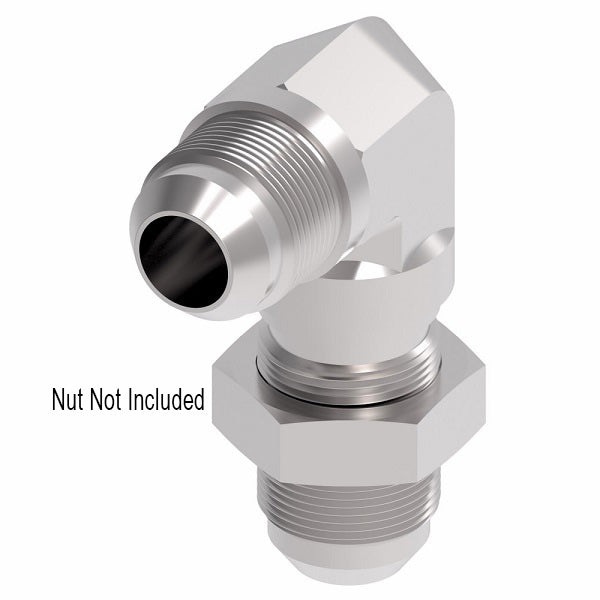

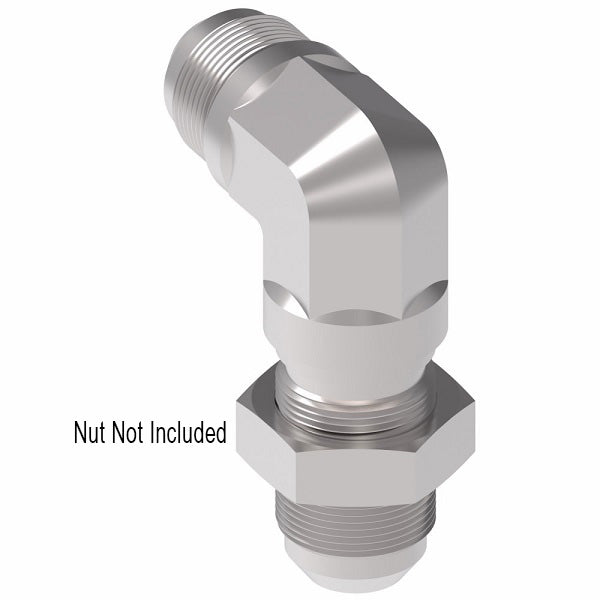

2043-1-4-4S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter (without Nut) | -04 Male 37° JIC Flare Bulkhead x -04 Male 37° JIC Flare | Steel
2043-1-4-4S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter (without Nut) | -04 Male 37° JIC Flare Bulkhead x -04 Male 37° JIC Flare | Steel
2043-1-4-4S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter (without Nut) | -04 Male 37° JIC Flare Bulkhead x -04 Male 37° JIC Flare | Steel
2043-1-4-4S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter (without Nut) | -04 Male 37° JIC Flare Bulkhead x -04 Male 37° JIC Flare | Steel

2043-1-4-4S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter (without Nut) | -04 Male 37° JIC Flare Bulkhead x -04 Male 37° JIC Flare | Steel

$6.85 - $6.85
$6.85
$6.85 - $6.85
$6.85

Aeroquip® by Danfoss
Male 37° JIC Flare Bulkhead/37° (JIC) Flare Adapter
Male 37° JIC Flare Bulkhead x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2043-1-4-4S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Male JIC, 1/4in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070701
Part Number
Steel		 Part Number
Steel
without Nut		 Tube O.D. Thread T1 Thread T2 A B
2043-3-3S - 0.19" 3/8-24 3/8-24 1.50" 0.94"
2043-4-4S 2043-1-4-4S 0.25" 7/16-20 7/16-20 1.59" 0.97"
2043-5-5S 2043-1-5-5S 0.31" 1/2-20 1/2-20 1.72" 1.06"
2043-6-6S 2043-1-6-6S 0.38" 9/16-18 9/16-18 1.81" 1.09"
2043-8-8S 2043-1-8-8S 0.50" 3/4-16 3/4-16 2.11" 1.36"
2043-10-10S 2043-1-10-10S 0.63" 7/8-14 7/8-14 2.39" 1.56"
2043-12-12S 2043-1-12-12S 0.75" 1-1/16-12 1-1/16-12 2.67" 1.78"
2043-16-16S 2043-1-16-16S 1.00" 1-5/16-12 1-5/16-12 2.80" 1.94"
