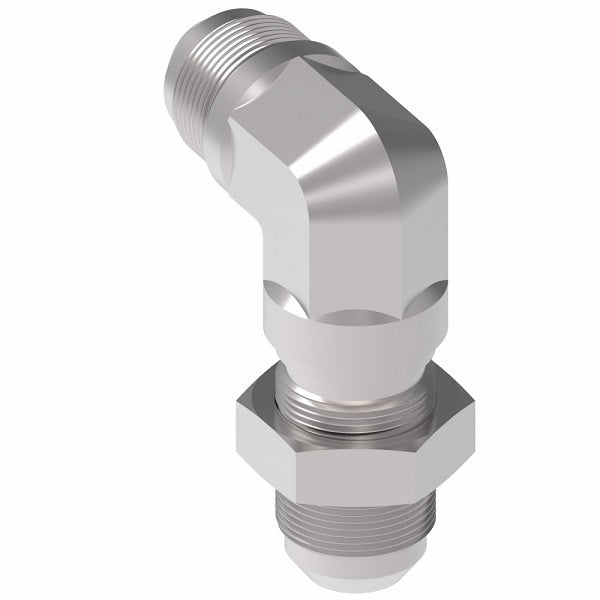

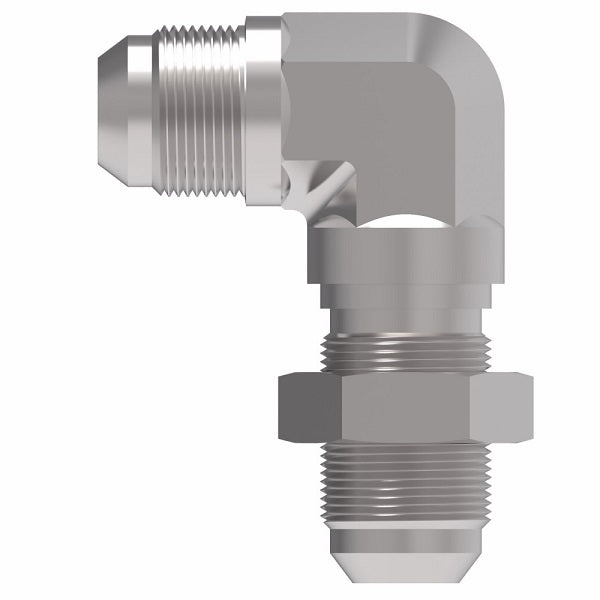

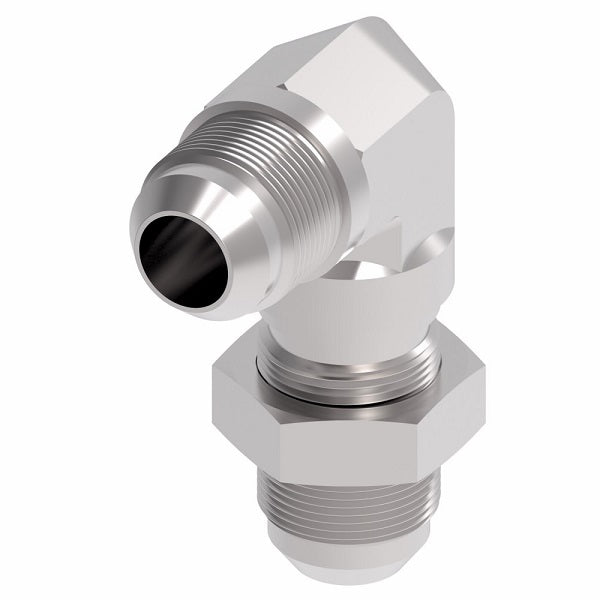

2043-5-5S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel

2043-5-5S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel

Name: 2043-5-5S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 2043-5-5S Danfoss
Price: 49.27 USD
Availability: InStock

$49.27 - $49.27

$49.27

$49.27 - $49.27

$49.27

Aeroquip® by Danfoss
Male 37° JIC Flare Bulkhead/37° (JIC) Flare Adapter
Male 37° JIC Flare Bulkhead x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2043-5-5S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	5/16in Male JIC, 5/16in Male JIC
Material(s):	Steel

Specifications:
Ref. SAE 070701


Part Number Steel	Part Number Steel without Nut	Tube O.D.	Thread T1	Thread T2	A	B
2043-3-3S	-	0.19"	3/8-24	3/8-24	1.50"	0.94"
2043-4-4S	2043-1-4-4S	0.25"	7/16-20	7/16-20	1.59"	0.97"
2043-5-5S	2043-1-5-5S	0.31"	1/2-20	1/2-20	1.72"	1.06"
2043-6-6S	2043-1-6-6S	0.38"	9/16-18	9/16-18	1.81"	1.09"
2043-8-8S	2043-1-8-8S	0.50"	3/4-16	3/4-16	2.11"	1.36"
2043-10-10S	2043-1-10-10S	0.63"	7/8-14	7/8-14	2.39"	1.56"
2043-12-12S	2043-1-12-12S	0.75"	1-1/16-12	1-1/16-12	2.67"	1.78"
2043-16-16S	2043-1-16-16S	1.00"	1-5/16-12	1-5/16-12	2.80"	1.94"
