Aeroquip® by Danfoss

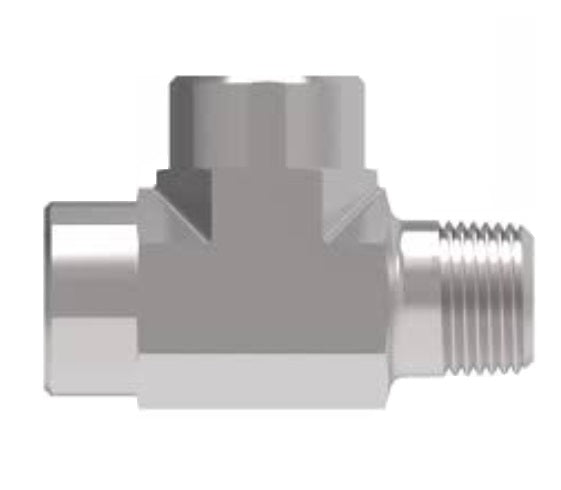

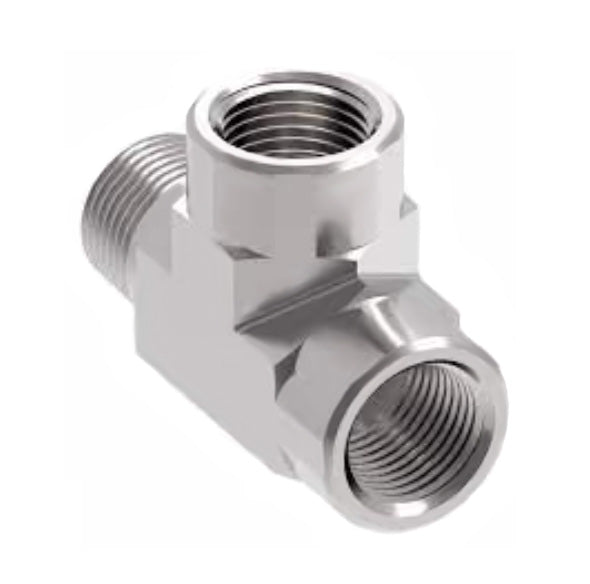

External Pipe Run/Internal Pipe Tee Adapter
Male NPTF x Female NPTF x Female NPTF

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2092-12-12S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	3/4in Male NPTF, 3/4in Female NPTF, 3/4in Female NPTF
Material(s):	Steel

Specifications:
Ref. SAE 140424


Steel Part Number	Threads P1	Threads P2	A	B	C
2092-2-2S	1/8-27	1/8-27	0.78"	0.66"	0.66"
2092-4-4S	1/4-18	1/4-18	1.09"	0.88"	0.88"
2092-6-6S	3/8-18	3/8-18	1.22"	1.02"	1.02"
2092-8-8S	1/2-14	1/2-14	1.47"	1.23"	1.23"
2092-12-12S	3/4-14	3/4-14	1.59"	1.36"	1.36"
2092-16-16S	1-11-1/2	1-11-1/2	1.97"	1.62"	1.62"
2092-20-20S	1-1/4-11-1/2	1-1/4-11-1/2	2.38"	1.70"	1.70"
