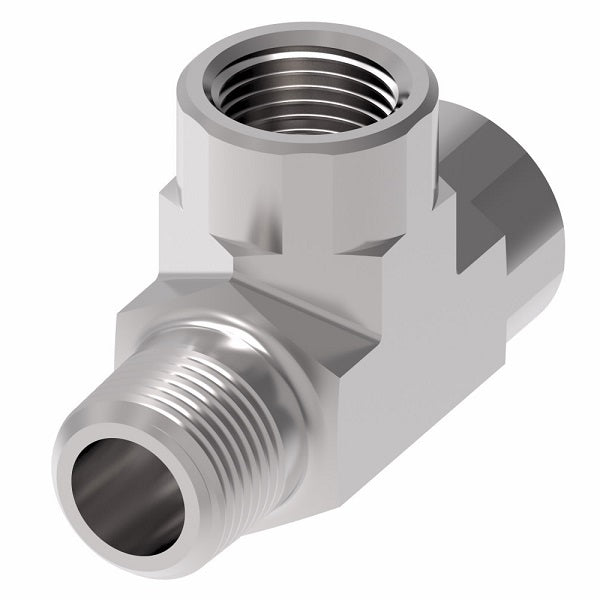

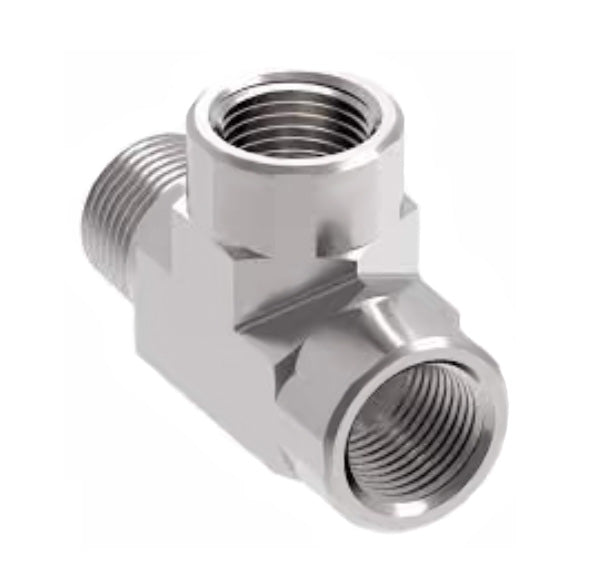

2092-8-8S Aeroquip by Danfoss | External Pipe Run/Internal Pipe Tee Adapter | -08 Male NPTF x -08 Female NPTF x -08 Female NPTF | Steel

2092-8-8S Aeroquip by Danfoss | External Pipe Run/Internal Pipe Tee Adapter | -08 Male NPTF x -08 Female NPTF x -08 Female NPTF | Steel

$13.48 - $13.48
$13.48
$13.48 - $13.48
$13.48

Aeroquip® by Danfoss
External Pipe Run/Internal Pipe Tee Adapter
Male NPTF x Female NPTF x Female NPTF

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2092-8-8S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/2in Male NPTF, 1/2in Female NPTF, 1/2in Female NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 140424
Steel Part Number Threads P1 Threads P2 A B C
2092-2-2S 1/8-27 1/8-27 0.78" 0.66" 0.66"
2092-4-4S 1/4-18 1/4-18 1.09" 0.88" 0.88"
2092-6-6S 3/8-18 3/8-18 1.22" 1.02" 1.02"
2092-8-8S 1/2-14 1/2-14 1.47" 1.23" 1.23"
2092-12-12S 3/4-14 3/4-14 1.59" 1.36" 1.36"
2092-16-16S 1-11-1/2 1-11-1/2 1.97" 1.62" 1.62"
2092-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 2.38" 1.70" 1.70"
