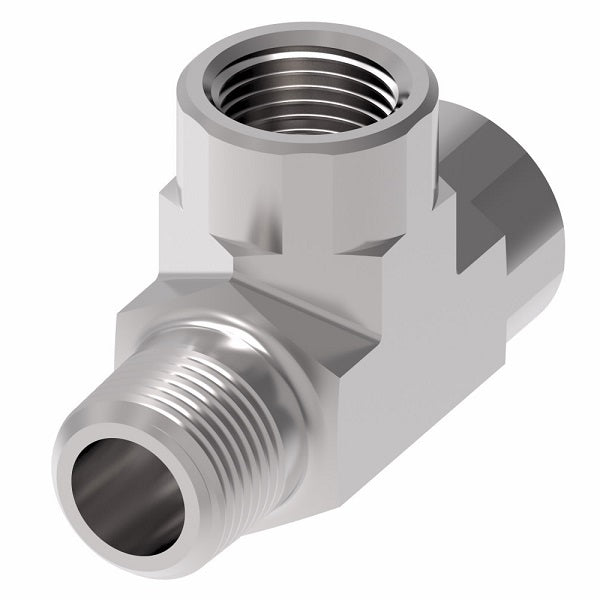

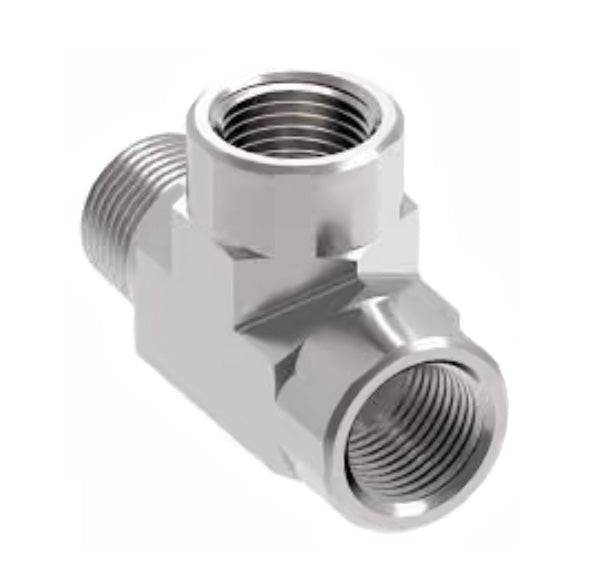

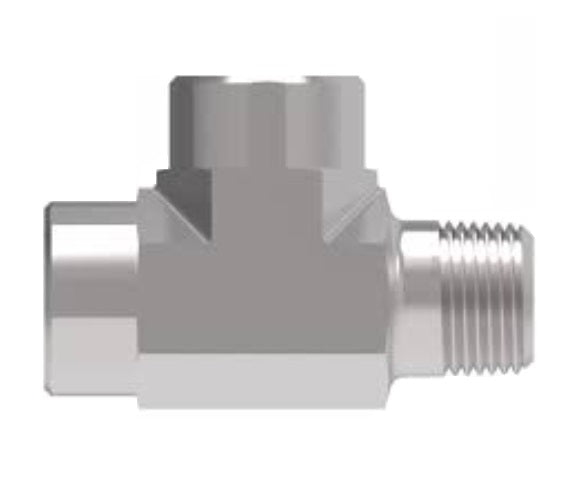

2092-4-4S Aeroquip by Danfoss | External Pipe Run/Internal Pipe Tee Adapter | -04 Male NPTF x -04 Female NPTF x -04 Female NPTF | Steel
2092-4-4S Aeroquip by Danfoss | External Pipe Run/Internal Pipe Tee Adapter | -04 Male NPTF x -04 Female NPTF x -04 Female NPTF | Steel
2092-4-4S Aeroquip by Danfoss | External Pipe Run/Internal Pipe Tee Adapter | -04 Male NPTF x -04 Female NPTF x -04 Female NPTF | Steel
2092-4-4S Aeroquip by Danfoss | External Pipe Run/Internal Pipe Tee Adapter | -04 Male NPTF x -04 Female NPTF x -04 Female NPTF | Steel

2092-4-4S Aeroquip by Danfoss | External Pipe Run/Internal Pipe Tee Adapter | -04 Male NPTF x -04 Female NPTF x -04 Female NPTF | Steel

$7.25 - $7.25
$7.25
$7.25 - $7.25
$7.25

Aeroquip® by Danfoss
External Pipe Run/Internal Pipe Tee Adapter
Male NPTF x Female NPTF x Female NPTF

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2092-4-4S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/4in Male NPTF, 1/4in Female NPTF, 1/4in Female NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 140424
Steel Part Number Threads P1 Threads P2 A B C
2092-2-2S 1/8-27 1/8-27 0.78" 0.66" 0.66"
2092-4-4S 1/4-18 1/4-18 1.09" 0.88" 0.88"
2092-6-6S 3/8-18 3/8-18 1.22" 1.02" 1.02"
2092-8-8S 1/2-14 1/2-14 1.47" 1.23" 1.23"
2092-12-12S 3/4-14 3/4-14 1.59" 1.36" 1.36"
2092-16-16S 1-11-1/2 1-11-1/2 1.97" 1.62" 1.62"
2092-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 2.38" 1.70" 1.70"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
