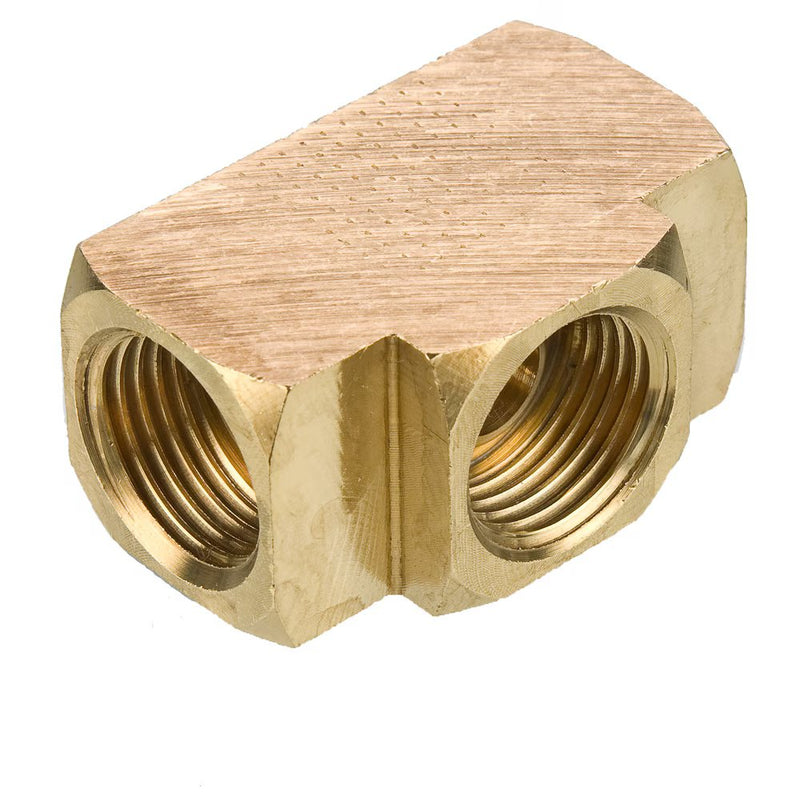

244IFHD-5 by Parker | Inverted Flare Fittings | Union | 5/16" Inverted Flare | 1.26" Length | Tee | Brass | Pack of 25

Save $193.70

$484.25

$484.25 - $484.25

$484.25

$290.55

$290.55 - $290.55

$290.55

by Parker Hannifin
Inverted Flared Fittings:Union Tee 244IFHD

Package Quantity: 25 Units

Specifications for Variant SKU: 244IFHD-5 Parker \| 25 \|
Series:	244IFHD Series
Shape (Orientation):	Tee
Material(s):	Brass
Special Properties:	Fuel Grade, UL Listed

Specification:
Product Features:	All brass construction UL listed for flammable liquid and gas Meets functional requirements of SAE J512 Steel nut for economy
Markets:	Air Conditioning Marine Mobile Engines
Applications:	Refrigerant Lines Brake Lines Fuel Lines
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Pressure Range:	See Chart Below

Compatible Tubing:	Copper Brass Aluminum Welded Steel Hydraulic Tubing


Part Number	Tube Size	Straight Thread	L	M	N	Flow Diameter (D)
244IFHD-3	3/16"	3/8"-24	1.10"	.55"	.39"	.125"
244IFHD-4	1/4"	7/16"-24	1.13"	.56"	.42"	.189"
244IFHD-5	5/16"	1/2"-20	1.26"	.63"	.45"	.220"
244IFHD-6	3/8"	5/8"-18	1.48"	.74"	.56"	.282"
244IFHD-8*	1/2"	3/4"-18	1.76"	.88"	.67"	.407"

*Does not meet SAE or UL.
