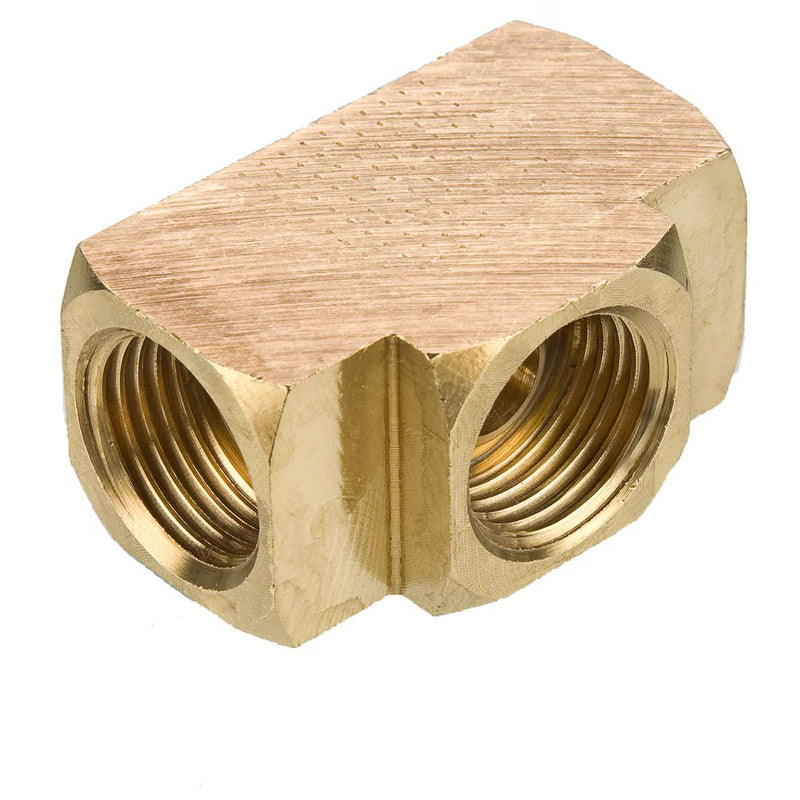

244IFHD-8 by Parker | Inverted Flare Fittings | Union | 1/2" Inverted Flare | 1.76" Length | Tee | Brass | Pack of 10

244IFHD-8 by Parker | Inverted Flare Fittings | Union | 1/2" Inverted Flare | 1.76" Length | Tee | Brass | Pack of 10

Save $35.27 Save $35.27
$258.60
$258.60 - $258.60
$258.60
$223.33
$223.33 - $223.33
$223.33

by Parker Hannifin
Inverted Flared Fittings:Union Tee 244IFHD

Package Quantity: 10 Units

Specifications for Variant SKU: 244IFHD-8 Parker | 10 |
Series: 244IFHD Series
Shape (Orientation): Tee
Material(s): Brass
Special Properties: Fuel Grade, UL Listed
Product Features:
  • All brass construction
  • UL listed for flammable liquid and gas
  • Meets functional requirements of SAE J512
  • Steel nut for economy
Markets:
  • Air Conditioning
  • Marine
  • Mobile
  • Engines
Applications:
  • Refrigerant Lines
  • Brake Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Aluminum
  • Welded Steel Hydraulic Tubing
Part Number Tube Size Straight Thread L M N Flow Diameter (D)
244IFHD-3 3/16" 3/8"-24 1.10" .55" .39" .125"
244IFHD-4 1/4" 7/16"-24 1.13" .56" .42" .189"
244IFHD-6 3/8" 5/8"-18 1.48" .74" .56" .282"
244IFHD-8* 1/2" 3/4"-18 1.76" .88" .67" .407"

*Does not meet SAE or UL.
