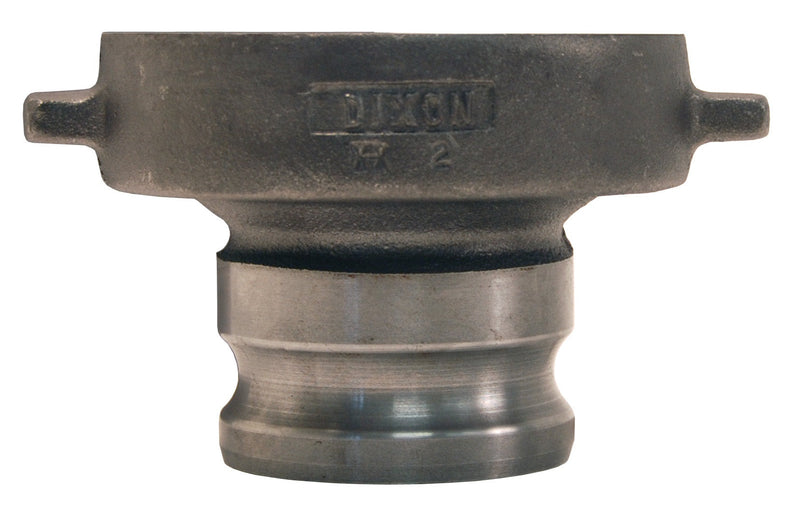

300-TCA-MI by Dixon Valve | Tank Car Adapter | 3" Adapter x 5" Railroad Tank Car Thread | Iron

Name: 300-TCA-MI by Dixon Valve | Tank Car Adapter | 3" Adapter x 5" Railroad Tank Car Thread | Iron
Brand: Dixon
SKU: 300-TCA-MI Dixon
Price: 169.93 USD
Availability: InStock

Save $16.58

$186.51

$186.51 - $186.51

$186.51

$169.93

$169.93 - $169.93

$169.93

Dixon Valve
Tank Car Adapter

Quantity

Specifications for Variant SKU: 300-TCA-MI Dixon
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	Railroad Thread, 3in Male Cam & Groove
Material(s):	Iron
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Standard 5" Railroad Tank Car thread.
Construction:
Nitrile Rubber gasket in the threaded end.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Stainless steel adapters are not compatible with the aluminum and brass adapters.

356T6 Aluminum Part Number	Brass Part Number	Iron Part Number	316 Stainless Steel Part Number	Size
200-TCA-AL	-	-	200-TCA-SS	2"
300-TCA-AL	300-TCA-BR	300-TCA-MI	300-TCA-SS	3"
400-TCA-AL	400-TCA-BR	-	400-TCA-SS	4"
