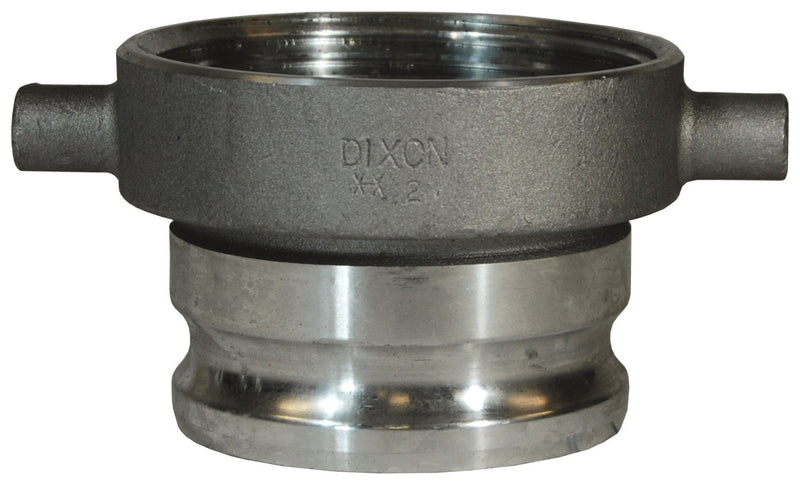

400-TCA-AL by Dixon Valve | Tank Car Adapter | 4" Adapter x 5" Railroad Tank Car Thread | Aluminum

400-TCA-AL by Dixon Valve | Tank Car Adapter | 4" Adapter x 5" Railroad Tank Car Thread | Aluminum

Save $8.53 Save $8.53
$76.80
$76.80 - $76.80
$76.80
$68.27
$68.27 - $68.27
$68.27

Dixon Valve
Tank Car Adapter
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 400-TCA-AL Dixon
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: Railroad Thread, 4in Male Cam & Groove
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Standard 5" Railroad Tank Car thread.
Construction:
  • Nitrile Rubber gasket in the threaded end.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Stainless steel adapters are not compatible with the aluminum and brass adapters.
356T6 Aluminum
Part Number		 Brass
Part Number		 Iron
Part Number		 316 Stainless Steel
Part Number		 Size
200-TCA-AL - - 200-TCA-SS 2"
300-TCA-AL 300-TCA-BR 300-TCA-MI 300-TCA-SS 3"
400-TCA-AL 400-TCA-BR - 400-TCA-SS 4"
