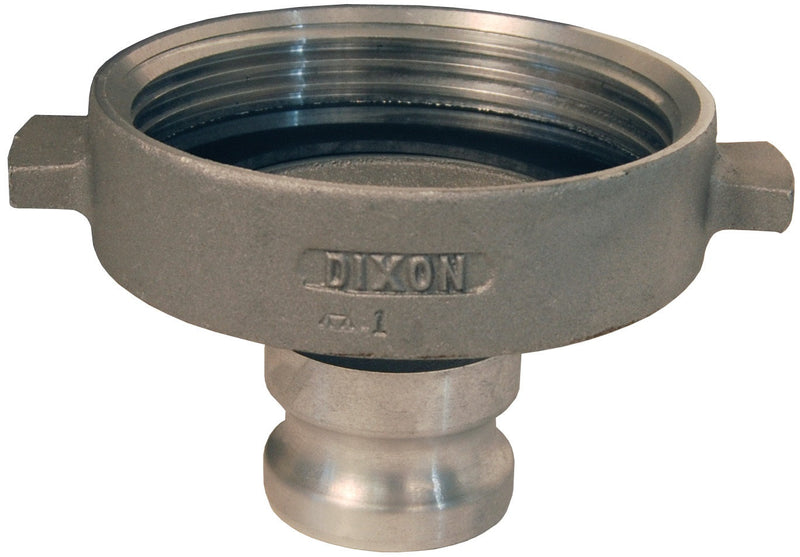

200-TCA-AL by Dixon Valve | Tank Car Adapter | 2" Adapter x 5" Railroad Tank Car Thread | Aluminum

Name: 200-TCA-AL by Dixon Valve | Tank Car Adapter | 2" Adapter x 5" Railroad Tank Car Thread | Aluminum
Brand: Dixon
SKU: 200-TCA-AL Dixon
Price: 82.45 USD
Availability: InStock

Save $8.05

$90.50

$90.50 - $90.50

$90.50

$82.45

$82.45 - $82.45

$82.45

Dixon Valve
Tank Car Adapter

Quantity

Specifications for Variant SKU: 200-TCA-AL Dixon
Shape (Orientation):	Straight
Ends Configuration:	Railroad Thread, 2in Male Cam & Groove
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Standard 5" Railroad Tank Car thread.
Construction:
Nitrile Rubber gasket in the threaded end.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Stainless steel adapters are not compatible with the aluminum and brass adapters.

356T6 Aluminum Part Number	Brass Part Number	Iron Part Number	316 Stainless Steel Part Number	Size
200-TCA-AL	-	-	200-TCA-SS	2"
300-TCA-AL	300-TCA-BR	300-TCA-MI	300-TCA-SS	3"
400-TCA-AL	400-TCA-BR	-	400-TCA-SS	4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
