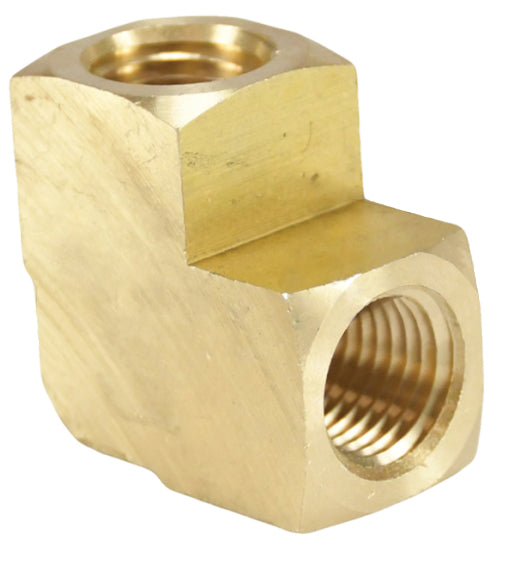

3020404C by Dixon Valve | Female Pipe Union | 90° Elbow | 1/4" Female NPTF x 1/4" Female NPTF | Extruded Brass

3020404C by Dixon Valve | Female Pipe Union | 90° Elbow | 1/4" Female NPTF x 1/4" Female NPTF | Extruded Brass

Save $0.11 Save $0.11
$4.95
$4.95 - $4.95
$4.95
$4.84
$4.84 - $4.84
$4.84

Dixon Valve
Pipe Fitting | Female Pipe Union | 90° Elbow | Female NPTF x Female NPTF
Specifications for Variant SKU: 3020404C Dixon
Series: 302 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): Brass
Specifications:
  • Ref SAE 130238.
  • Dryseal
Safety Notes:
  • Lead-Free Brass: Conforms To: Safe Water Drinking Act (SWDA) of Jan. 4, 2014; California AB1953; RoHS Compliant. NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745
Extruded Brass
Part Number		 Previous
Part Number		 Female NPTF x Female NPTF
3020202C EL1F1F 1/8" x 1/8"
3020404C EL2F2F 1/4" x 1/4"
3020606C EL3F3F 3/8" x 3/8"
3020808C EL4F4F 1/2" x 1/2"
3021212C EL6F6F 3/4"
Lead-Free Brass
Part Number		 316 Stainless Steel
Part Number		 Female NPT x Female NPT
- 3020202SS 1/8"
- 3020404SS 1/4"
3020606CLF 3020606SS 3/8"
3020808CLF 3020808SS 1/2"
- 3021212SS 3/4"
- 3021616SS 1"
