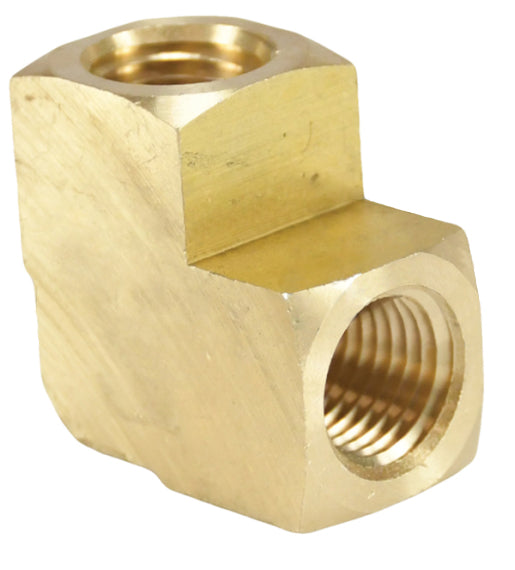

3020202C by Dixon Valve | Female Pipe Union | 90° Elbow | 1/8" Female NPTF x 1/8" Female NPTF | Extruded Brass

3020202C by Dixon Valve | Female Pipe Union | 90° Elbow | 1/8" Female NPTF x 1/8" Female NPTF | Extruded Brass

Save $0.25 Save $0.25
$2.25
$2.25 - $2.25
$2.25
$2.00
$2.00 - $2.00
$2.00

Dixon Valve
Pipe Fitting | Female Pipe Union | 90° Elbow | Female NPTF x Female NPTF
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 3020202C Dixon
Series: 302 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s): Brass
Specifications:
  • Ref SAE 130238.
  • Dryseal
Safety Notes:
  • Lead-Free Brass: Conforms To: Safe Water Drinking Act (SWDA) of Jan. 4, 2014; California AB1953; RoHS Compliant. NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745
Extruded Brass
Part Number		 Previous
Part Number		 Female NPTF x Female NPTF
3020202C EL1F1F 1/8" x 1/8"
3020404C EL2F2F 1/4" x 1/4"
3020606C EL3F3F 3/8" x 3/8"
3020808C EL4F4F 1/2" x 1/2"
3021212C EL6F6F 3/4"
Lead-Free Brass
Part Number		 316 Stainless Steel
Part Number		 Female NPT x Female NPT
- 3020202SS 1/8"
- 3020404SS 1/4"
3020606CLF 3020606SS 3/8"
3020808CLF 3020808SS 1/2"
- 3021212SS 3/4"
- 3021616SS 1"
