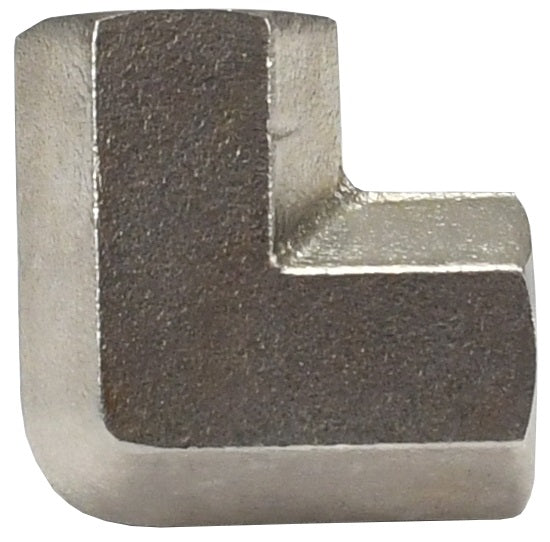

3021616SS by Dixon Valve | Female Pipe Union | 90° Elbow | 1" Female NPT x 1" Female NPT | 316 Stainless Steel

Name: 3021616SS by Dixon Valve | Female Pipe Union | 90° Elbow | 1" Female NPT x 1" Female NPT | 316 Stainless Steel
Brand: Dixon
SKU: 3021616SS Dixon
Price: 56.89 USD
Availability: InStock

$55.67 - $55.67

$55.67

$56.89

$56.89 - $56.89

$56.89

Dixon Valve
Pipe Fitting | Female Pipe Union | 90° Elbow | Female NPTF x Female NPTF

Quantity

Specifications for Variant SKU: 3021616SS Dixon
Series:	302 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1in Female NPT, 1in Female NPT, Some Ends Match
Material(s):	316 Stainless Steel

Specifications:
Ref SAE 130238. Dryseal
Safety Notes:
Lead-Free Brass: Conforms To: Safe Water Drinking Act (SWDA) of Jan. 4, 2014; California AB1953; RoHS Compliant. NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745

Extruded Brass Part Number	Previous Part Number	Female NPTF x Female NPTF
3020202C	EL1F1F	1/8" x 1/8"
3020404C	EL2F2F	1/4" x 1/4"
3020606C	EL3F3F	3/8" x 3/8"
3020808C	EL4F4F	1/2" x 1/2"
3021212C	EL6F6F	3/4"

Lead-Free Brass Part Number	316 Stainless Steel Part Number	Female NPT x Female NPT
-	3020202SS	1/8"
-	3020404SS	1/4"
3020606CLF	3020606SS	3/8"
3020808CLF	3020808SS	1/2"
-	3021212SS	3/4"
-	3021616SS	1"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
