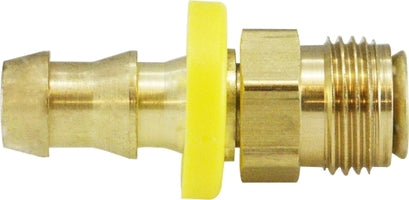

30279 (30-279) Midland Push On Hose Barb - Inverted Flare Male Swivel - 5/8-18 UNF Thread - 3/8" Hose ID x 3/8" Male Inverted Flare - Brass

30279 by Midland | Push On Hose Barb | Inverted Flare Swivel | 5/8-18 UNF Thread | 3/8" Hose ID x 3/8" Male Inverted Flare | Brass

Save $0.43

$3.84

$3.84 - $3.84

$3.84

$3.41

$3.41 - $3.41

$3.41

Midland Industries
Brass Fitting - Push On Barb Fitting - Inverted Flare Male Swivel

Inventory @ Manufacturers Warehouse: 1330 Units

Quantity

Specifications for Variant SKU: 30279 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/8in Push-On Hose Barb, 3/8in Male Inverted Flare
Material(s):	Brass

SPECIFICATIONS

Applications:	Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI	Advantages:	Easy assembly. No clamps needed.
SAE Rating:	N/A	Lead Free:	No

Assembly Instructions:
1) Lubricate insert. 2) Hold hose at angle as shown & push on and up over first barb. 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2) Bend hose and remove with a quick pull.

Crossover Series:
29P016	129PO6	290	100B-B	KA-MF	1MS	947


Part Number	Hose ID x Male Inverted Flare	UNF Thread	A	B	Hex	Approx. Weight (Lbs.)
30275 (30-275)	1/4" x 3/16"	3/8-24	1.52"	0.87"	0.37"	0.04
30276 (30-276)	1/4" x 1/4"	7/16-24	1.56"	0.87"	0.43"	0.04
30277 (30-277)	1/4" x 5/16"	1/2-20	1.62"	0.87"	0.50"	0.04
30280 (30-280)	5/16" x 5/16"	1/2-20	1.62"	0.87"	0.50"	0.06
30283 (30-283)	5/16" x 3/8"	5/8-18	1.63"	0.87"	0.62"	0.06
30284 (30-284)	3/8" x 5/16"	1/2-20	1.72"	0.97"	0.50"	0.06
30279 (30-279)	3/8" x 3/8"	5/8-18	1.76"	0.97"	0.62"	0.06
30282 (30-282)	1/2" x 1/2"	3/4-18	1.84"	0.97"	0.75"	0.10
30286 (30-286)	5/8" x 5/8"	7/8-18	2.50"	1.57"	0.87"	0.14
