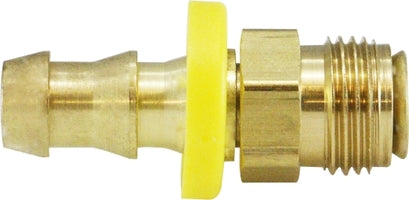

30277 (30-277) Midland Push On Hose Barb - Inverted Flare Male Swivel - 1/2-20 UNF Thread - 1/4" Hose ID x 5/16" Male Inverted Flare - Brass

30277 by Midland | Push On Hose Barb | Inverted Flare Swivel | 1/2-20 UNF Thread | 1/4" Hose ID x 5/16" Male Inverted Flare | Brass

Save $1.93 Save $1.93
$4.82
$4.82 - $4.82
$4.82
$2.89
$2.89 - $2.89
$2.89

Midland Industries
Brass Fitting - Push On Barb Fitting - Inverted Flare Male Swivel

Inventory @ Manufacturers Warehouse: 98 Units
Specifications for Variant SKU: 30277 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-On Hose Barb, 5/16in Male Inverted Flare
Material(s): Brass

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: No


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Crossover Series:
29P016 129PO6 290 100B-B KA-MF 1MS 947
Part Number Hose ID x Male Inverted Flare UNF Thread A B Hex Approx. Weight
(Lbs.)
30275
(30-275) 		1/4" x 3/16" 3/8-24 1.52" 0.87" 0.37" 0.04
30276
(30-276) 		1/4" x 1/4" 7/16-24 1.56" 0.87" 0.43" 0.04
30277
(30-277) 		1/4" x 5/16" 1/2-20 1.62" 0.87" 0.50" 0.04
30280
(30-280) 		5/16" x 5/16" 1/2-20 1.62" 0.87" 0.50" 0.06
30283
(30-283) 		5/16" x 3/8" 5/8-18 1.63" 0.87" 0.62" 0.06
30284
(30-284) 		3/8" x 5/16" 1/2-20 1.72" 0.97" 0.50" 0.06
30279
(30-279) 		3/8" x 3/8" 5/8-18 1.76" 0.97" 0.62" 0.06
30282
(30-282) 		1/2" x 1/2" 3/4-18 1.84" 0.97" 0.75" 0.10
30286
(30-286) 		5/8" x 5/8" 7/8-18 2.50" 1.57" 0.87" 0.14
