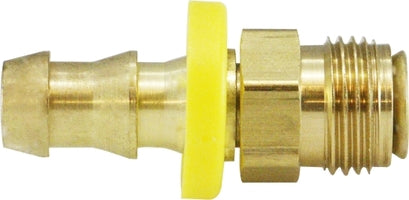

30276 by Midland | Push On Hose Barb | Inverted Flare Swivel | 7/16-24 UNF Thread | 1/4" Hose ID x 1/4" Male Inverted Flare | Brass

Save $0.34 Save $0.34
Original price $3.05
Original price $3.05 - Original price $3.05
Original price $3.05
Current price $2.71
$2.71 - $2.71
Current price $2.71

Midland Industries
Brass Fitting - Push On Barb Fitting - Inverted Flare Male Swivel

Inventory @ Manufacturers Warehouse: 684 Units

Specifications for Variant SKU: 30276 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-On Hose Barb, 1/4in Male Inverted Flare
Material(s): Brass

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI
Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: No


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Crossover Series:
29P016 129PO6 290 100B-B KA-MF 1MS 947
Part Number Hose ID x Male Inverted Flare UNF Thread A B Hex Approx. Weight
(Lbs.)
30275
(30-275)
1/4" x 3/16" 3/8-24 1.52" 0.87" 0.37" 0.04
30276
(30-276)
1/4" x 1/4" 7/16-24 1.56" 0.87" 0.43" 0.04
30277
(30-277)
1/4" x 5/16" 1/2-20 1.62" 0.87" 0.50" 0.04
30280
(30-280)
5/16" x 5/16" 1/2-20 1.62" 0.87" 0.50" 0.06
30283
(30-283)
5/16" x 3/8" 5/8-18 1.63" 0.87" 0.62" 0.06
30284
(30-284)
3/8" x 5/16" 1/2-20 1.72" 0.97" 0.50" 0.06
30279
(30-279)
3/8" x 3/8" 5/8-18 1.76" 0.97" 0.62" 0.06
30282
(30-282)
1/2" x 1/2" 3/4-18 1.84" 0.97" 0.75" 0.10
30286
(30-286)
5/8" x 5/8" 7/8-18 2.50" 1.57" 0.87" 0.14
