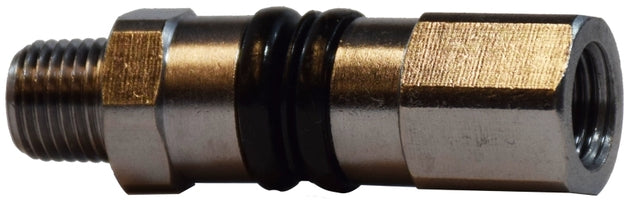

320061 (320-061) Midland 360° Turning Swivel - 1/4" Female NPTF x 1/4" Male NPTF - Brass

320061 by Midland | 360° Turning Swivel | 1/4" Female NPTF x 1/4" Male NPTF | Brass

Save $6.98 Save $6.98
$17.45
$17.45 - $17.45
$17.45
$10.47
$10.47 - $10.47
$10.47

Midland Industries
Brass Fitting - Pipe Thread - 360° Turning Swivel

Inventory @ Manufacturers Warehouse: 496 Units
Specifications for Variant SKU: 320061 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPTF, 1/4in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
344R 3183
Part Number Size
320061
(320-061)		 1/4"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
