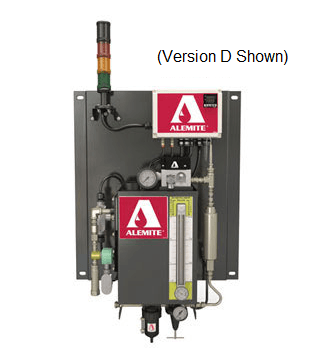

32302-B by Alemite | Oil Mist Modular Generator | 3 Gallon | 230 V | 2.3 CFM | Version B

32302-B by Alemite | Oil Mist Modular Generator | 3 Gallon | 230 V | 2.3 CFM | Version B

Save $101.70 Save $101.70
$9,533.84
$9,533.84 - $9,533.84
$9,533.84
$9,432.14
$9,432.14 - $9,432.14
$9,432.14

PRODUCT DESCRIPTION

Alemite Centralized Lubrication - Oil Mist Modular Generators - 3 Gallon
Specifications for Variant SKU: 32302-B Alemite
Benefits:
  • Increases service life of equipment by reducing component wear
  • Contributes to an increase in production availability
  • Significantly reduces bearing wear and temperature
  • Lowers lubricant consumption, often by 80% or more
  • Lubricates hard-to-reach points
  • No moving parts to wear out
Features:
Included Components Versions
A B C D E
Air Mist Head with Loader Fittings • • • • •
Pressure Relief Valve • • • • •
Mist Pressure Gauge • • • • •
Integrated Air Inlets Assembly with
Moisture Separator and Air Pressure Regulator		 • • • • •
Oil Level Sight Glass with Thermometer • • • • •
3-Gal Oil Reservoir • • • • •
Oil Heater with High Temperature Limit Switch • • • • •
Cleanout Door for Easy Cleaning of the Tank • • • • •
Hi-Lo Oil Level Float Switch with
Oil Refill Warning Capability		 • • • • •
High and Low Mist Pressure Switches with
Warning Capabilities		 • • • •
Audible and Visual Alarms with Stacked Lights • • • •
Steel Mounting Plate • • • •
Control Box, NEMA 4, 115/230V • • • •
Oil Refill Assembly consisting of
Soleniod Valve, Filter, and Switch for Automated Oil Refill		 • •
Air Heater and Air Temperature Controller • •

  • VERSION A = BASIC UNIT
    • Manual refill bucket pump assembly (PN 388034) simplifies filling
      Hi-Lo oil level float switch allows for connection to
      external signal devices by means of interposing relay
  • VERSION B = VERSION A PLUS
    • Mounting Plate
    • Alarm Annunciator with Stacked Lights
    • Mist Pressure Switch
    • Control Box
  • VERSION C = VERSION B PLUS
    • Automatic Oil Refill Capability
    • Note: Use of optional automatic refill pump kit
      (388415) highly recommended
  • VERSION D = VERSION C PLUS
    • Air Heater
    • Temperature Controller
  • VERSION E = VERSION D WITHOUT
    • Oil Refill Assembly

Part Number Voltage CFM Version
31151-A 115V 1 CFM A
31151-B 115V 1 CFM B
31151-C 115V 1 CFM C
31151-D 115V 1 CFM D
31151-E 115V 1 CFM E
31152-A 115V 2.3 CFM A
31152-B 115V 2.3 CFM B
31152-C 115V 2.3 CFM C
31152-D 115V 2.3 CFM D
31152-E 115V 2.3 CFM E
31154-A 115V 4.3 CFM A
31154-B 115V 4.3 CFM B
31154-C 115V 4.3 CFM C
31154-D 115V 4.3 CFM D
31154-E 115V 4.3 CFM E
31159-A 115V 9.7 CFM A
31159-B 115V 9.7 CFM B
31159-C 115V 9.7 CFM C
31159-D 115V 9.7 CFM D
31159-E 115V 9.7 CFM E
32301-A 230V 1 CFM A
32301-B 230V 1 CFM B
32301-C 230V 1 CFM C
32301-D 230V 1 CFM D
32301-E 230V 1 CFM E
32302-A 230V 2.3 CFM A
32302-B 230V 2.3 CFM B
32302-C 230V 2.3 CFM C
32302-D 230V 2.3 CFM D
32302-E 230V 2.3 CFM E
32304-A 230V 4.3 CFM A
32304-B 230V 4.3 CFM B
32304-C 230V 4.3 CFM C
32304-D 230V 4.3 CFM D
32304-E 230V 4.3 CFM E
32309-A 230V 9.7 CFM A
32309-B 230V 9.7 CFM B
32309-C 230V 9.7 CFM C
32309-D 230V 9.7 CFM D
32309-E 230V 9.7 CFM E
