PRODUCT DESCRIPTION

Alemite Centralized Lubrication - Oil Mist Modular Generators - 3 Gallon

Specifications for Variant SKU: 31154-D Alemite

Benefits:

Increases service life of equipment by reducing component wear
Contributes to an increase in production availability
Significantly reduces bearing wear and temperature
Lowers lubricant consumption, often by 80% or more
Lubricates hard-to-reach points
No moving parts to wear out

Features:

Included Components	Versions
	A	B	C	D	E
Air Mist Head with Loader Fittings	•	•	•	•	•
Pressure Relief Valve	•	•	•	•	•
Mist Pressure Gauge	•	•	•	•	•
Integrated Air Inlets Assembly with Moisture Separator and Air Pressure Regulator	•	•	•	•	•
Oil Level Sight Glass with Thermometer	•	•	•	•	•
3-Gal Oil Reservoir	•	•	•	•	•
Oil Heater with High Temperature Limit Switch	•	•	•	•	•
Cleanout Door for Easy Cleaning of the Tank	•	•	•	•	•
Hi-Lo Oil Level Float Switch with Oil Refill Warning Capability	•	•	•	•	•
High and Low Mist Pressure Switches with Warning Capabilities		•	•	•	•
Audible and Visual Alarms with Stacked Lights		•	•	•	•
Steel Mounting Plate		•	•	•	•
Control Box, NEMA 4, 115/230V		•	•	•	•
Oil Refill Assembly consisting of Soleniod Valve, Filter, and Switch for Automated Oil Refill			•	•
Air Heater and Air Temperature Controller				•	•

VERSION A = BASIC UNIT
- Manual refill bucket pump assembly (PN 388034) simplifies filling
  Hi-Lo oil level float switch allows for connection to
  external signal devices by means of interposing relay
VERSION B = VERSION A PLUS
- Mounting Plate
- Alarm Annunciator with Stacked Lights
- Mist Pressure Switch
- Control Box
VERSION C = VERSION B PLUS
- Automatic Oil Refill Capability
- Note: Use of optional automatic refill pump kit
  (388415) highly recommended

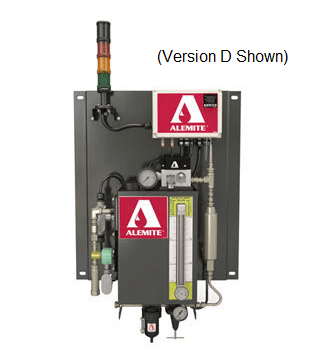

VERSION D = VERSION C PLUS
- Air Heater
- Temperature Controller
VERSION E = VERSION D WITHOUT
- Oil Refill Assembly

Part Number	Voltage	CFM	Version
31151-A	115V	1 CFM	A
31151-B	115V	1 CFM	B
31151-C	115V	1 CFM	C
31151-D	115V	1 CFM	D
31151-E	115V	1 CFM	E

31152-A	115V	2.3 CFM	A
31152-B	115V	2.3 CFM	B
31152-C	115V	2.3 CFM	C
31152-D	115V	2.3 CFM	D
31152-E	115V	2.3 CFM	E

31154-A	115V	4.3 CFM	A
31154-B	115V	4.3 CFM	B
31154-C	115V	4.3 CFM	C
31154-D	115V	4.3 CFM	D
31154-E	115V	4.3 CFM	E

31159-A	115V	9.7 CFM	A
31159-B	115V	9.7 CFM	B
31159-C	115V	9.7 CFM	C
31159-D	115V	9.7 CFM	D
31159-E	115V	9.7 CFM	E

32301-A	230V	1 CFM	A
32301-B	230V	1 CFM	B
32301-C	230V	1 CFM	C
32301-D	230V	1 CFM	D
32301-E	230V	1 CFM	E

32302-A	230V	2.3 CFM	A
32302-B	230V	2.3 CFM	B
32302-C	230V	2.3 CFM	C
32302-D	230V	2.3 CFM	D
32302-E	230V	2.3 CFM	E

32304-A	230V	4.3 CFM	A
32304-B	230V	4.3 CFM	B
32304-C	230V	4.3 CFM	C
32304-D	230V	4.3 CFM	D
32304-E	230V	4.3 CFM	E

32309-A	230V	9.7 CFM	A
32309-B	230V	9.7 CFM	B
32309-C	230V	9.7 CFM	C
32309-D	230V	9.7 CFM	D
32309-E	230V	9.7 CFM	E
