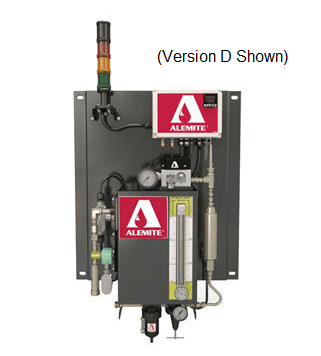

32309-D by Alemite | Oil Mist Modular Generator | 3 Gallon | 230 V | 9.7 CFM | Version D

32309-D by Alemite | Oil Mist Modular Generator | 3 Gallon | 230 V | 9.7 CFM | Version D

Save $137.23 Save $137.23
$12,864.14
$12,864.14 - $12,864.14
$12,864.14
$12,726.91
$12,726.91 - $12,726.91
$12,726.91

PRODUCT DESCRIPTION

Alemite Centralized Lubrication - Oil Mist Modular Generators - 3 Gallon
Specifications for Variant SKU: 32309-D Alemite
Benefits:
  • Increases service life of equipment by reducing component wear
  • Contributes to an increase in production availability
  • Significantly reduces bearing wear and temperature
  • Lowers lubricant consumption, often by 80% or more
  • Lubricates hard-to-reach points
  • No moving parts to wear out
Features:
Included Components Versions
A B C D E
Air Mist Head with Loader Fittings • • • • •
Pressure Relief Valve • • • • •
Mist Pressure Gauge • • • • •
Integrated Air Inlets Assembly with
Moisture Separator and Air Pressure Regulator		 • • • • •
Oil Level Sight Glass with Thermometer • • • • •
3-Gal Oil Reservoir • • • • •
Oil Heater with High Temperature Limit Switch • • • • •
Cleanout Door for Easy Cleaning of the Tank • • • • •
Hi-Lo Oil Level Float Switch with
Oil Refill Warning Capability		 • • • • •
High and Low Mist Pressure Switches with
Warning Capabilities		 • • • •
Audible and Visual Alarms with Stacked Lights • • • •
Steel Mounting Plate • • • •
Control Box, NEMA 4, 115/230V • • • •
Oil Refill Assembly consisting of
Soleniod Valve, Filter, and Switch for Automated Oil Refill		 • •
Air Heater and Air Temperature Controller • •

  • VERSION A = BASIC UNIT
    • Manual refill bucket pump assembly (PN 388034) simplifies filling
      Hi-Lo oil level float switch allows for connection to
      external signal devices by means of interposing relay
  • VERSION B = VERSION A PLUS
    • Mounting Plate
    • Alarm Annunciator with Stacked Lights
    • Mist Pressure Switch
    • Control Box
  • VERSION C = VERSION B PLUS
    • Automatic Oil Refill Capability
    • Note: Use of optional automatic refill pump kit
      (388415) highly recommended
  • VERSION D = VERSION C PLUS
    • Air Heater
    • Temperature Controller
  • VERSION E = VERSION D WITHOUT
    • Oil Refill Assembly

Part Number Voltage CFM Version
31151-A 115V 1 CFM A
31151-B 115V 1 CFM B
31151-C 115V 1 CFM C
31151-D 115V 1 CFM D
31151-E 115V 1 CFM E
31152-A 115V 2.3 CFM A
31152-B 115V 2.3 CFM B
31152-C 115V 2.3 CFM C
31152-D 115V 2.3 CFM D
31152-E 115V 2.3 CFM E
31154-A 115V 4.3 CFM A
31154-B 115V 4.3 CFM B
31154-C 115V 4.3 CFM C
31154-D 115V 4.3 CFM D
31154-E 115V 4.3 CFM E
31159-A 115V 9.7 CFM A
31159-B 115V 9.7 CFM B
31159-C 115V 9.7 CFM C
31159-D 115V 9.7 CFM D
31159-E 115V 9.7 CFM E
32301-A 230V 1 CFM A
32301-B 230V 1 CFM B
32301-C 230V 1 CFM C
32301-D 230V 1 CFM D
32301-E 230V 1 CFM E
32302-A 230V 2.3 CFM A
32302-B 230V 2.3 CFM B
32302-C 230V 2.3 CFM C
32302-D 230V 2.3 CFM D
32302-E 230V 2.3 CFM E
32304-A 230V 4.3 CFM A
32304-B 230V 4.3 CFM B
32304-C 230V 4.3 CFM C
32304-D 230V 4.3 CFM D
32304-E 230V 4.3 CFM E
32309-A 230V 9.7 CFM A
32309-B 230V 9.7 CFM B
32309-C 230V 9.7 CFM C
32309-D 230V 9.7 CFM D
32309-E 230V 9.7 CFM E
Alemite | SKF

Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.
