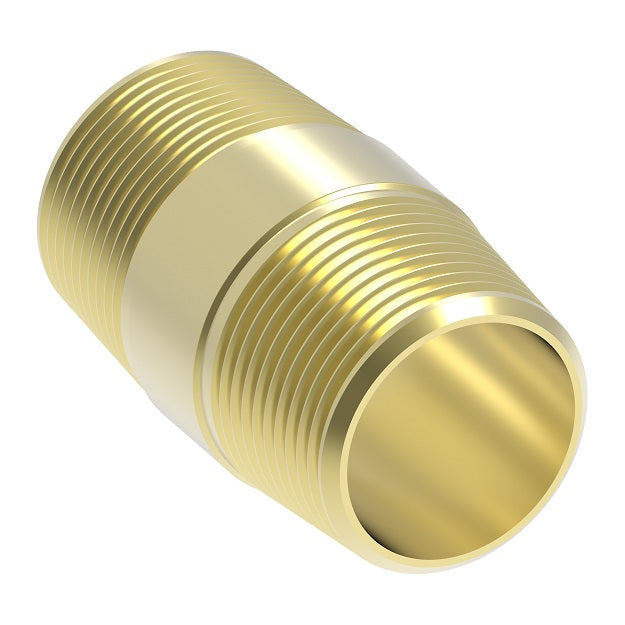

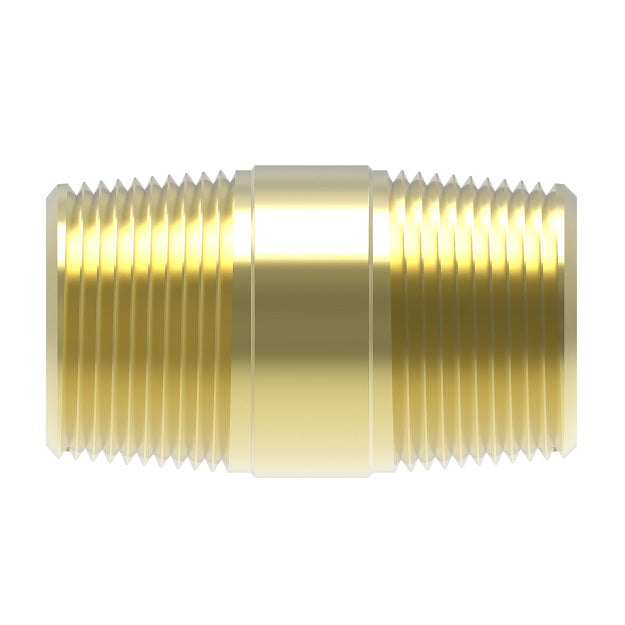

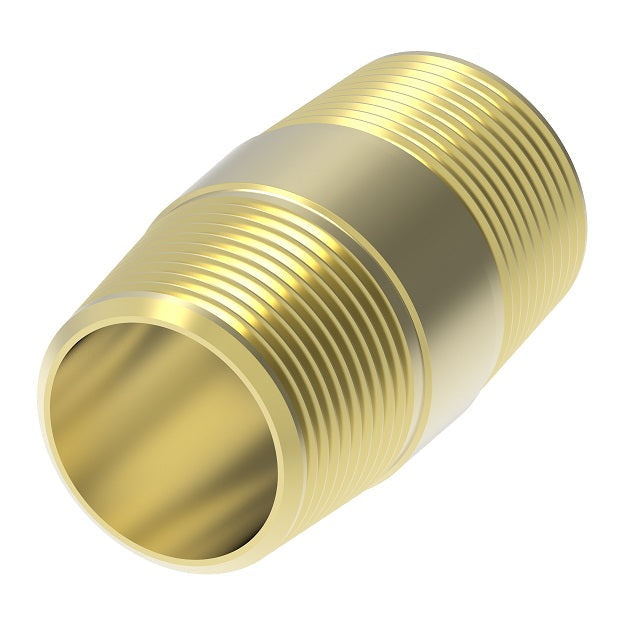

3326X12 by Danfoss | Pipe Adapter | Close Nipple | 3/4" Male NPTF x 3/4" Male NPTF | Brass

3326X12 by Danfoss | Pipe Adapter | Close Nipple | 3/4" Male NPTF x 3/4" Male NPTF | Brass

Name: 3326X12 by Danfoss | Pipe Adapter | Close Nipple | 3/4" Male NPTF x 3/4" Male NPTF | Brass
Brand: Danfoss/Eaton
SKU: 3326X12 Danfoss
Price: 10.95 USD
Availability: InStock

$10.95 - $10.95

$10.95

$10.95 - $10.95

$10.95

Aeroquip® by Danfoss
Pipe Adapter - Close Nipple

Quantity

Specifications for Variant SKU: 3326X12 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPTF, 3/4in Male NPTF, Some Ends Match
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Brass with Sealant Part Number	Male Pipe Thread	D	L
3326X2	3326X2Z	1/8"	0.281"	0.75"
3326X4	3326X4Z	1/4"	0.375"	0.88"
3326X6	3326X6Z	3/8"	0.500"	1.00"
3326X8	3326X8Z	1/2"	0.625"	1.12"
3326X12	-	3/4"	0.750"	1.38"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
