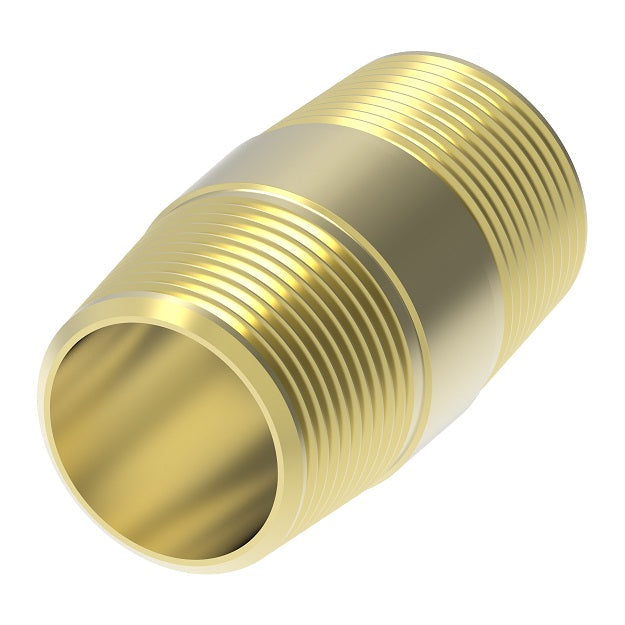

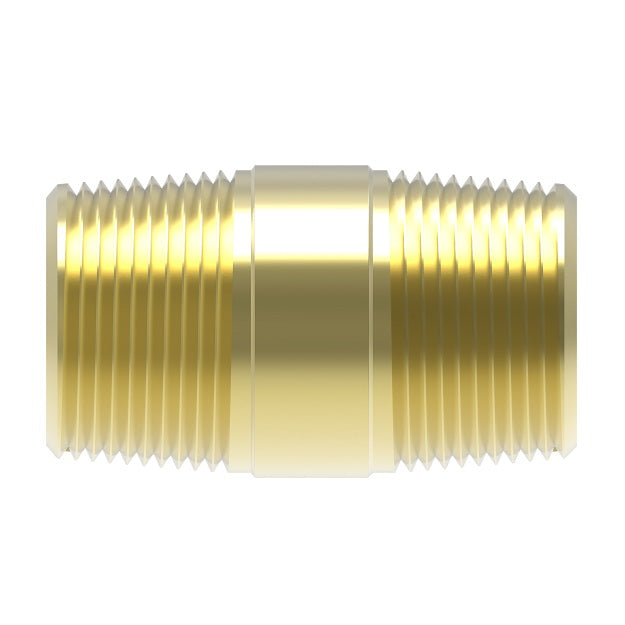

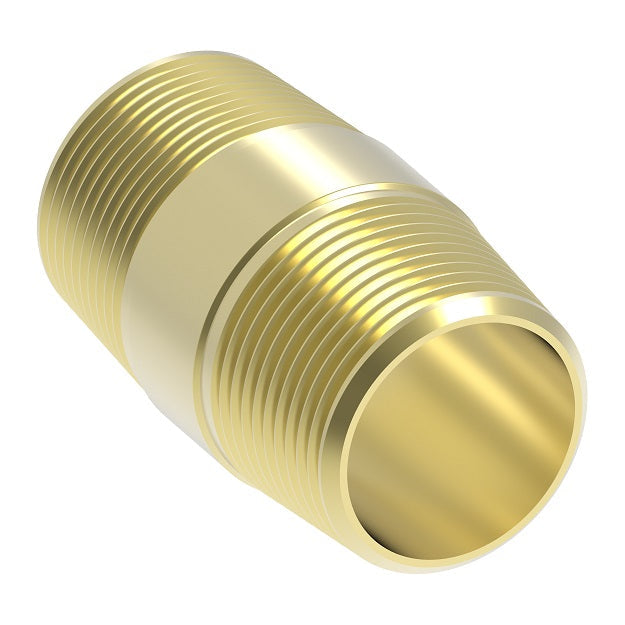

3326X4Z by Danfoss | Pipe Adapter | Close Nipple (with Sealant) | 1/4" Male NPTF x 1/4" Male NPTF | Brass

3326X4Z by Danfoss | Pipe Adapter | Close Nipple (with Sealant) | 1/4" Male NPTF x 1/4" Male NPTF | Brass

Name: 3326X4Z by Danfoss | Pipe Adapter | Close Nipple (with Sealant) | 1/4" Male NPTF x 1/4" Male NPTF | Brass
Brand: Danfoss/Eaton
SKU: 3326X4Z Danfoss
Price: 1.46 USD
Availability: InStock

$1.46 - $1.46

$1.46

$1.46 - $1.46

$1.46

Aeroquip® by Danfoss
Pipe Adapter - Close Nipple

Specifications for Variant SKU: 3326X4Z Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPTF, 1/4in Male NPTF, Some Ends Match
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Brass with Sealant Part Number	Male Pipe Thread	D	L
3326X2	3326X2Z	1/8"	0.281"	0.75"
3326X4	3326X4Z	1/4"	0.375"	0.88"
3326X6	3326X6Z	3/8"	0.500"	1.00"
3326X8	3326X8Z	1/2"	0.625"	1.12"
3326X12	-	3/4"	0.750"	1.38"
