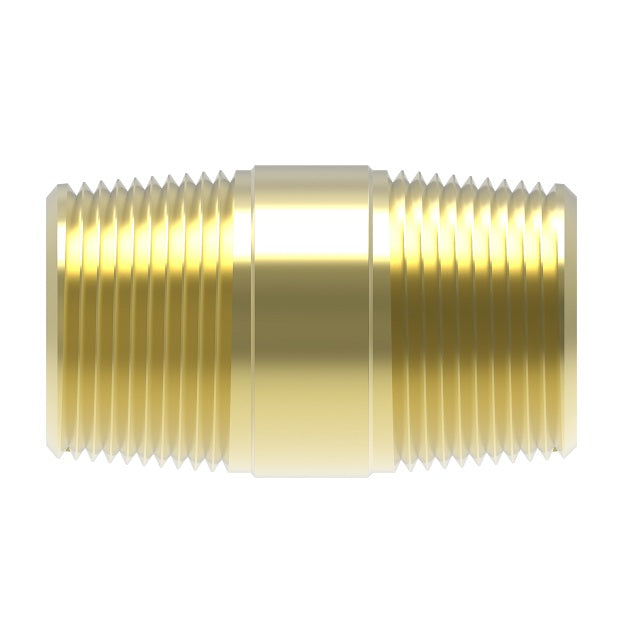

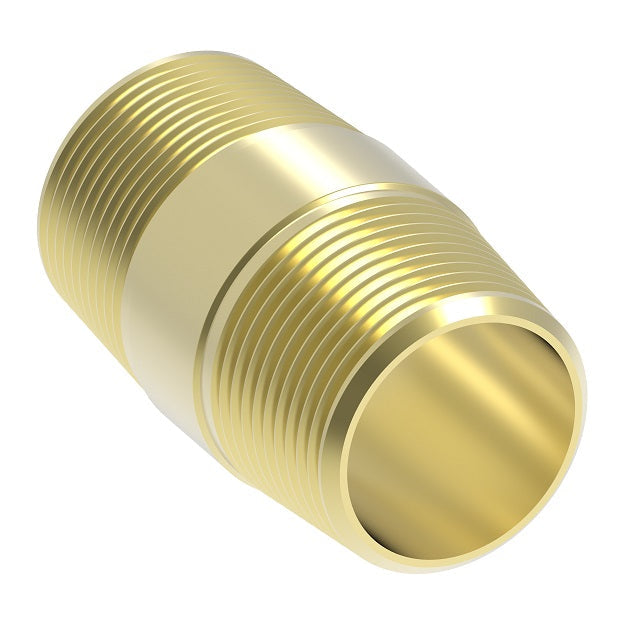

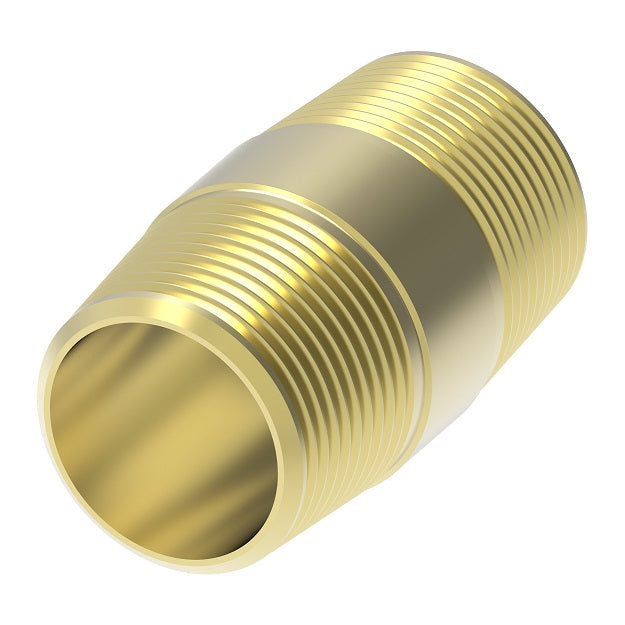

3326X8Z by Danfoss | Pipe Adapter | Close Nipple (with Sealant) | 1/2" Male NPTF x 1/2" Male NPTF | Brass
3326X8Z by Danfoss | Pipe Adapter | Close Nipple (with Sealant) | 1/2" Male NPTF x 1/2" Male NPTF | Brass
3326X8Z by Danfoss | Pipe Adapter | Close Nipple (with Sealant) | 1/2" Male NPTF x 1/2" Male NPTF | Brass
3326X8Z by Danfoss | Pipe Adapter | Close Nipple (with Sealant) | 1/2" Male NPTF x 1/2" Male NPTF | Brass

3326X8Z by Danfoss | Pipe Adapter | Close Nipple (with Sealant) | 1/2" Male NPTF x 1/2" Male NPTF | Brass

$7.86 - $7.86
$7.86
$7.86 - $7.86
$7.86

Aeroquip® by Danfoss
Pipe Adapter - Close Nipple
Specifications for Variant SKU: 3326X8Z Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 1/2in Male NPTF, Some Ends Match
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Male Pipe
Thread		 D L
3326X2 3326X2Z 1/8" 0.281" 0.75"
3326X4 3326X4Z 1/4" 0.375" 0.88"
3326X6 3326X6Z 3/8" 0.500" 1.00"
3326X8 3326X8Z 1/2" 0.625" 1.12"
3326X12 - 3/4" 0.750" 1.38"
