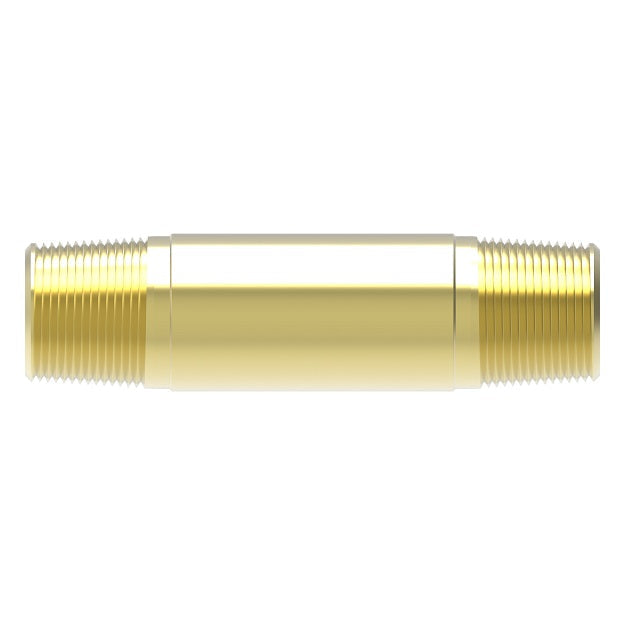

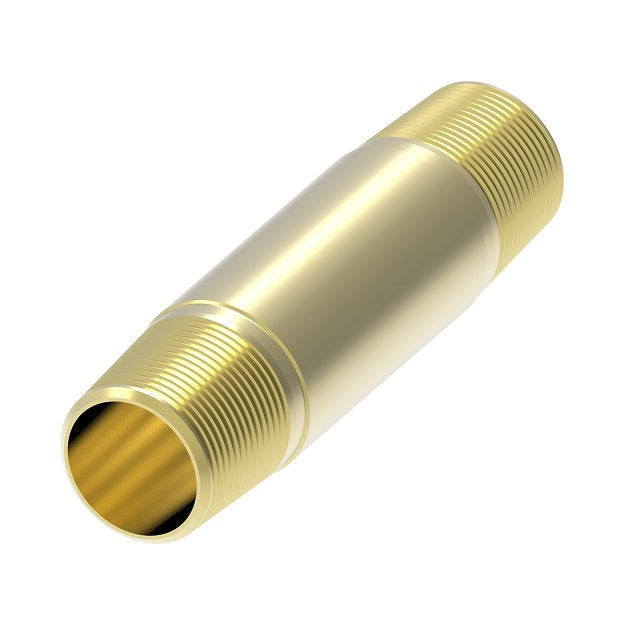

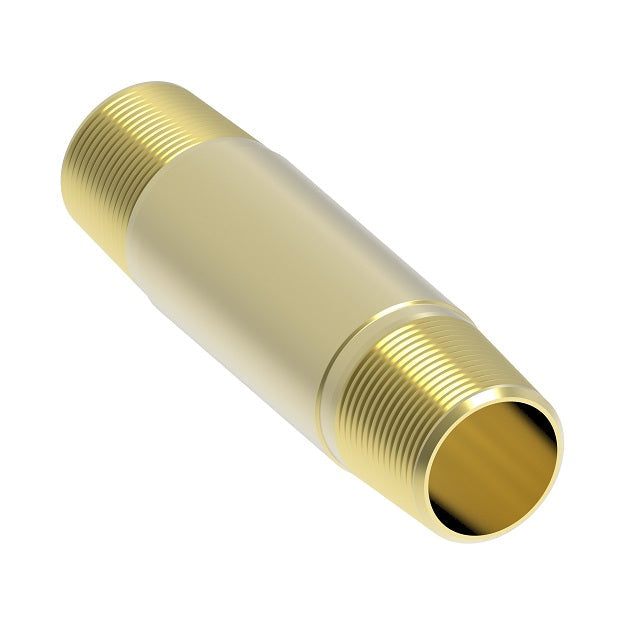

3329X8 by Danfoss | Pipe Adapter | Long Nipple | 1/2" Male Pipe x 1/2" Male Pipe | 2.50" Length | Brass
3329X8 by Danfoss | Pipe Adapter | Long Nipple | 1/2" Male Pipe x 1/2" Male Pipe | 2.50" Length | Brass
3329X8 by Danfoss | Pipe Adapter | Long Nipple | 1/2" Male Pipe x 1/2" Male Pipe | 2.50" Length | Brass
3329X8 by Danfoss | Pipe Adapter | Long Nipple | 1/2" Male Pipe x 1/2" Male Pipe | 2.50" Length | Brass

3329X8 by Danfoss | Pipe Adapter | Long Nipple | 1/2" Male Pipe x 1/2" Male Pipe | 2.50" Length | Brass

$10.82 - $10.82
$10.82
$10.82 - $10.82
$10.82

Aeroquip® by Danfoss
Pipe Adapter - Long Nipple
Specifications for Variant SKU: 3329X8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPT, 1/2in Male NPT, Some Ends Match
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Male Pipe
Thread		 D L
3327X2 1/8" 0.281" 1.50"
3328X2 1/8" 0.281" 2.00"
3329X2 1/8" 0.281" 2.50"
3330X2 1/8" 0.281" 3.00"
3327X4 1/4" 0.375" 1.50"
3328X4 1/4" 0.375" 2.00"
3329X4 1/4" 0.375" 2.50"
3330X4 1/4" 0.375" 3.00"
3327X6 3/8" 0.480" 1.50"
3328X6 3/8" 0.490" 2.00"
3329X6 3/8" 0.480" 2.50"
3330X6 3/8" 0.480" 3.00"
3328X8 1/2" 0.625" 2.00"
3329X8 1/2" 0.625" 2.50"
3330X8 1/2" 0.625" 3.00"
3329X12 3/4" 0.750" 2.50"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
