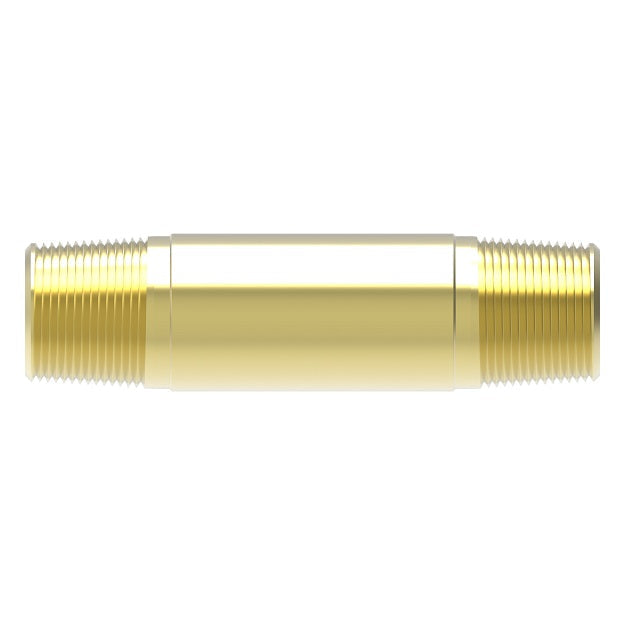

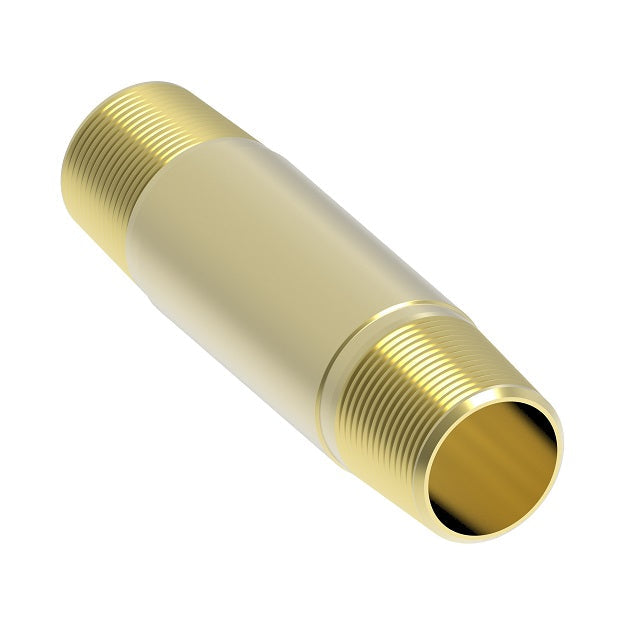

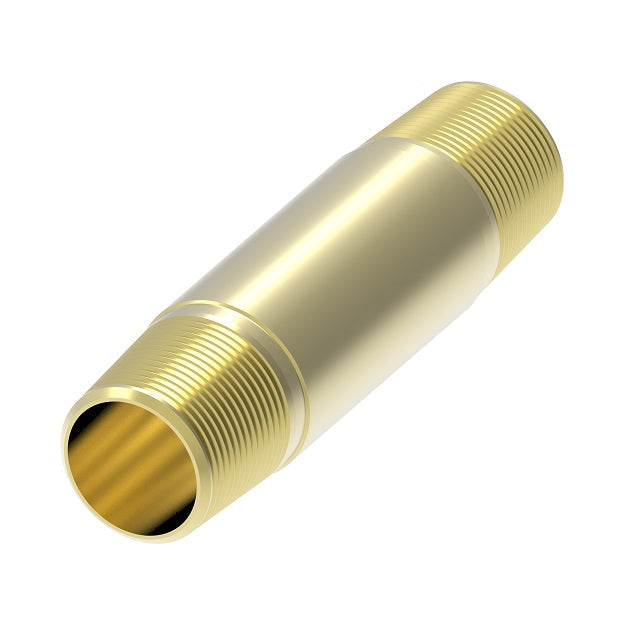

3330X2 by Danfoss | Pipe Adapter | Long Nipple | 1/8" Male Pipe x 1/8" Male Pipe | 3.00" Length | Brass

3330X2 by Danfoss | Pipe Adapter | Long Nipple | 1/8" Male Pipe x 1/8" Male Pipe | 3.00" Length | Brass

$8.88 - $8.88

$8.88

$8.88 - $8.88

$8.88

Aeroquip® by Danfoss
Pipe Adapter - Long Nipple

Specifications for Variant SKU: 3330X2 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/8in Male NPT, 1/8in Male NPT, Some Ends Match
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Male Pipe Thread	D	L
3327X2	1/8"	0.281"	1.50"
3328X2	1/8"	0.281"	2.00"
3329X2	1/8"	0.281"	2.50"
3330X2	1/8"	0.281"	3.00"
3327X4	1/4"	0.375"	1.50"
3328X4	1/4"	0.375"	2.00"
3329X4	1/4"	0.375"	2.50"
3330X4	1/4"	0.375"	3.00"
3327X6	3/8"	0.480"	1.50"
3328X6	3/8"	0.490"	2.00"
3329X6	3/8"	0.480"	2.50"
3330X6	3/8"	0.480"	3.00"
3328X8	1/2"	0.625"	2.00"
3329X8	1/2"	0.625"	2.50"
3330X8	1/2"	0.625"	3.00"
3329X12	3/4"	0.750"	2.50"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
