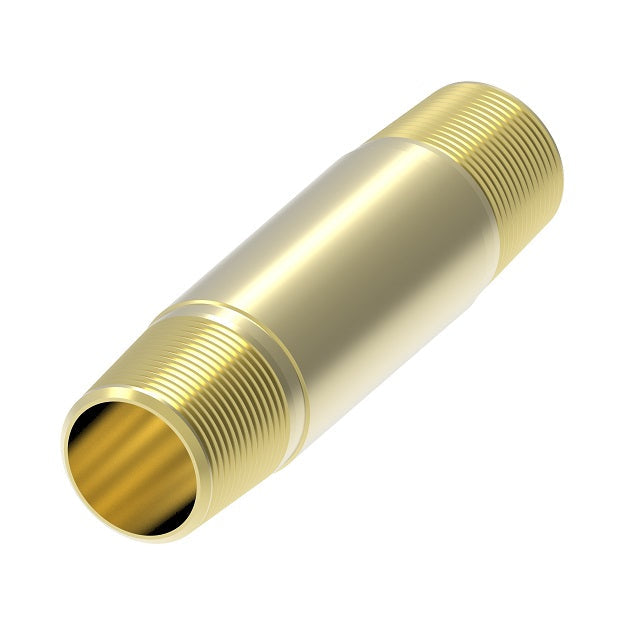

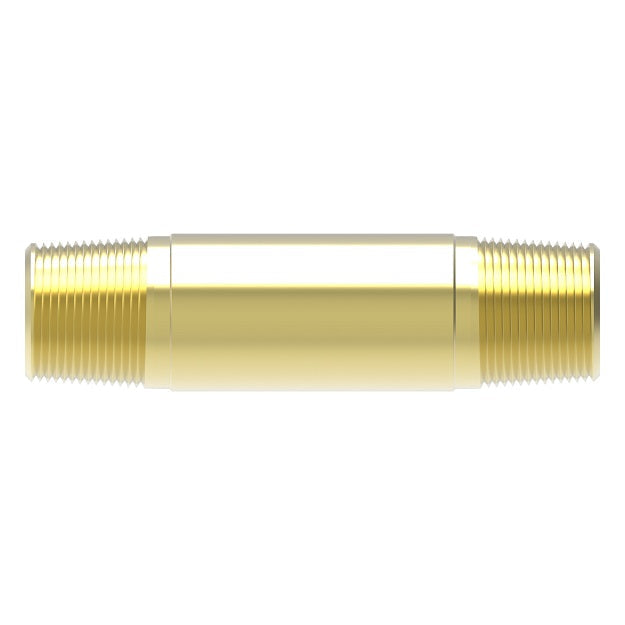

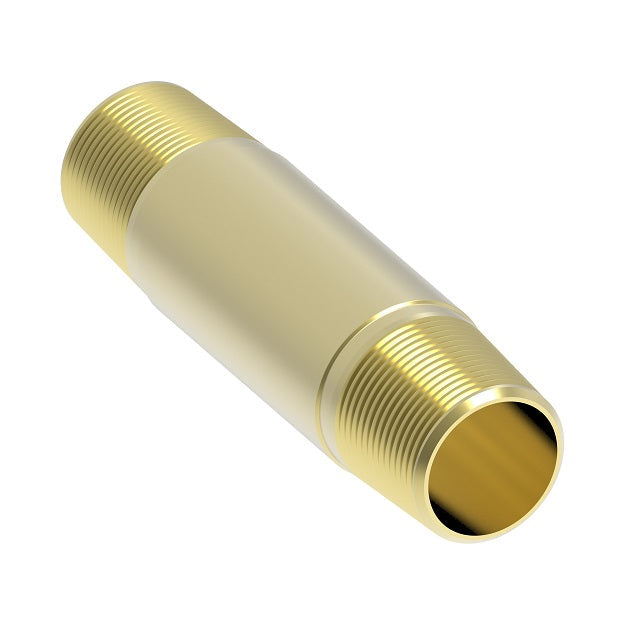

3327X6 by Danfoss | Pipe Adapter | Long Nipple | 3/8" Male Pipe x 3/8" Male Pipe | 1.50" Length | Brass

3327X6 by Danfoss | Pipe Adapter | Long Nipple | 3/8" Male Pipe x 3/8" Male Pipe | 1.50" Length | Brass

$6.10 - $6.10

$6.10

$6.10 - $6.10

$6.10

Aeroquip® by Danfoss
Pipe Adapter - Long Nipple

Quantity

Specifications for Variant SKU: 3327X6 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPT, 3/8in Male NPT, Some Ends Match
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Male Pipe Thread	D	L
3327X2	1/8"	0.281"	1.50"
3328X2	1/8"	0.281"	2.00"
3329X2	1/8"	0.281"	2.50"
3330X2	1/8"	0.281"	3.00"
3327X4	1/4"	0.375"	1.50"
3328X4	1/4"	0.375"	2.00"
3329X4	1/4"	0.375"	2.50"
3330X4	1/4"	0.375"	3.00"
3327X6	3/8"	0.480"	1.50"
3328X6	3/8"	0.490"	2.00"
3329X6	3/8"	0.480"	2.50"
3330X6	3/8"	0.480"	3.00"
3328X8	1/2"	0.625"	2.00"
3329X8	1/2"	0.625"	2.50"
3330X8	1/2"	0.625"	3.00"
3329X12	3/4"	0.750"	2.50"
