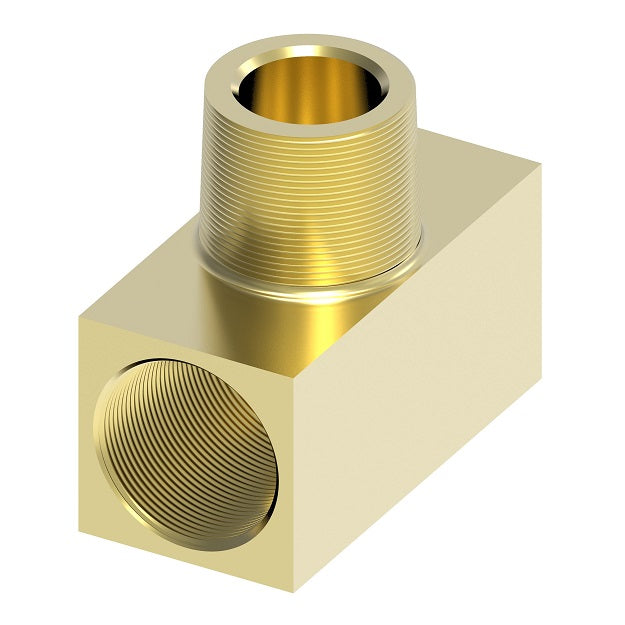

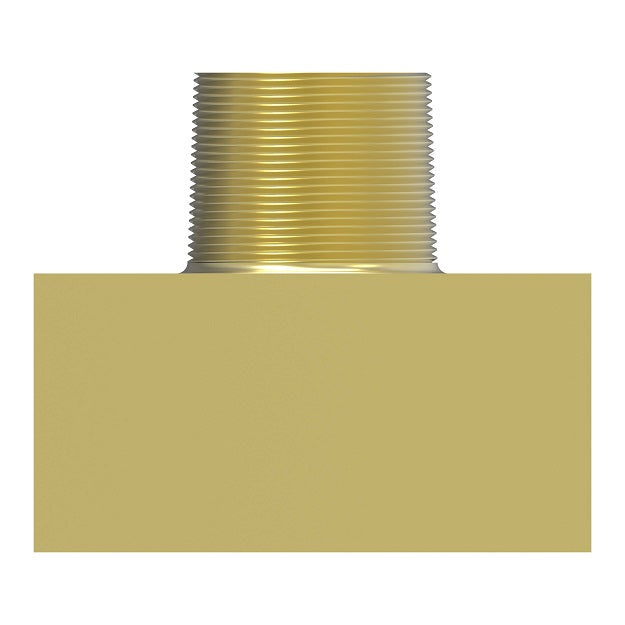

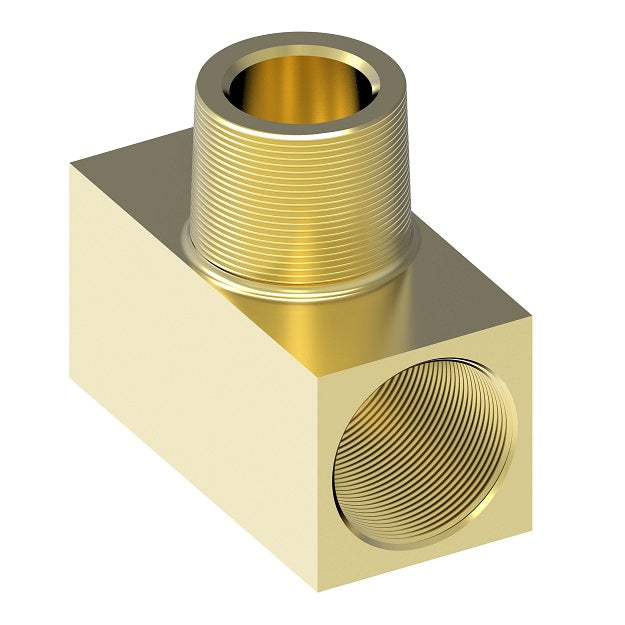

3600X2Z by Danfoss | Pipe Adapter | Male Branch Tee (with Sealant) | 1/8" Female NPTF x 1/8" Female NPTF x 1/8" Male NPTF | Brass
3600X2Z by Danfoss | Pipe Adapter | Male Branch Tee (with Sealant) | 1/8" Female NPTF x 1/8" Female NPTF x 1/8" Male NPTF | Brass
3600X2Z by Danfoss | Pipe Adapter | Male Branch Tee (with Sealant) | 1/8" Female NPTF x 1/8" Female NPTF x 1/8" Male NPTF | Brass
3600X2Z by Danfoss | Pipe Adapter | Male Branch Tee (with Sealant) | 1/8" Female NPTF x 1/8" Female NPTF x 1/8" Male NPTF | Brass

3600X2Z by Danfoss | Pipe Adapter | Male Branch Tee (with Sealant) | 1/8" Female NPTF x 1/8" Female NPTF x 1/8" Male NPTF | Brass

$5.61 - $5.61
$5.61
$5.61 - $5.61
$5.61

Aeroquip® by Danfoss
Pipe Adapter - Male Branch Tee
Specifications for Variant SKU: 3600X2Z Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/8in Female NPTF, 1/8in Female NPTF, 1/8in Male NPTF, Some Ends Match
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130425
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Female Pipe
Thread		 Male Pipe
Thread		 C D L L2 N
3600X2 3600X2Z 1/8" 1/8" 9/16" 0.219" 1.10" 0.55" 0.67"
3600X4 3600X4Z 1/4" 1/4" 11/16" 0.312" 1.56" 0.78" 0.91"
3600X6 3600X6Z 3/8" 3/8" 13/16" 0.438" 1.68" 0.84" 0.97"
3600X8 3600X8Z 1/2" 1/2" 1" 0.562" 2.18" 1.09" 1.25"
3600X12 - 3/4" 3/4" 1-1/4" 0.750" 2.32" 1.16" 1.38"
