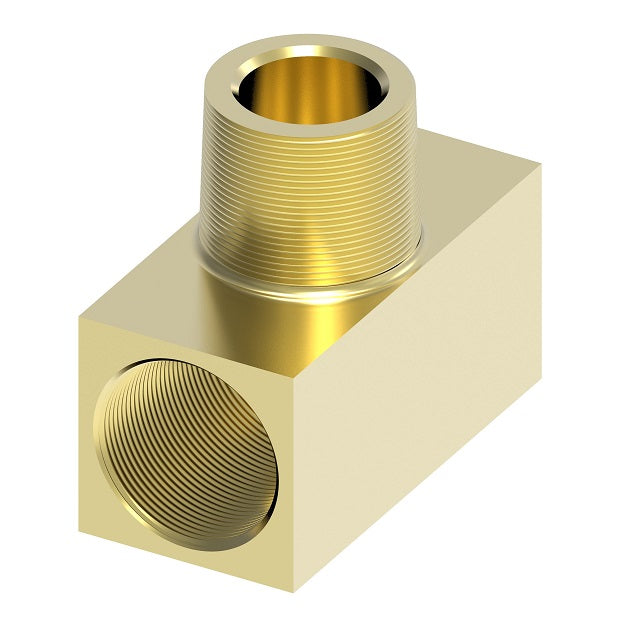

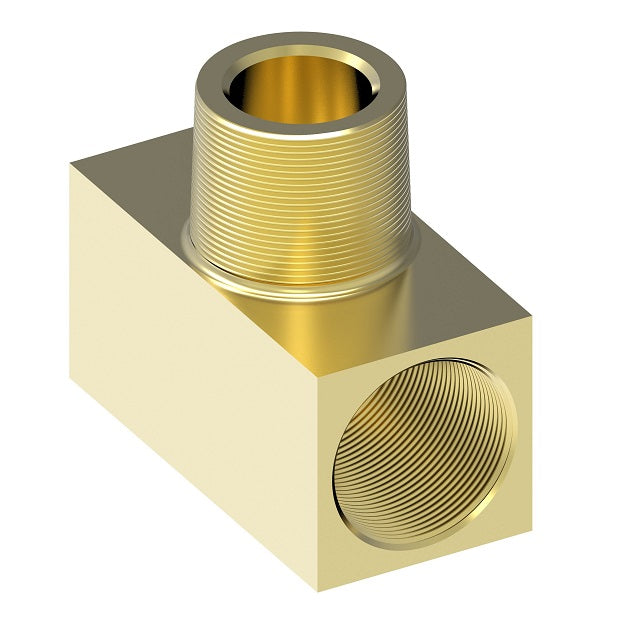

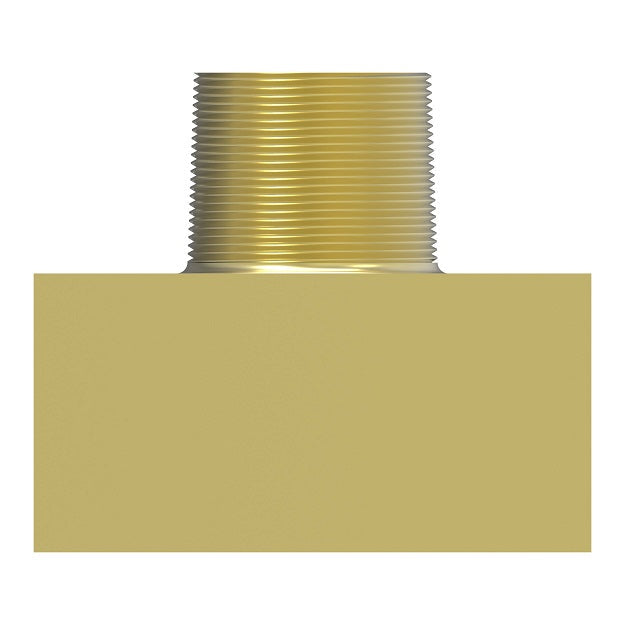

3600X8 by Danfoss | Pipe Adapter | Male Branch Tee | 1/2" Female NPTF x 1/2" Female NPTF x 1/2" Male NPTF | Brass
3600X8 by Danfoss | Pipe Adapter | Male Branch Tee | 1/2" Female NPTF x 1/2" Female NPTF x 1/2" Male NPTF | Brass
3600X8 by Danfoss | Pipe Adapter | Male Branch Tee | 1/2" Female NPTF x 1/2" Female NPTF x 1/2" Male NPTF | Brass
3600X8 by Danfoss | Pipe Adapter | Male Branch Tee | 1/2" Female NPTF x 1/2" Female NPTF x 1/2" Male NPTF | Brass

3600X8 by Danfoss | Pipe Adapter | Male Branch Tee | 1/2" Female NPTF x 1/2" Female NPTF x 1/2" Male NPTF | Brass

$27.22 - $27.22
$27.22
$27.22 - $27.22
$27.22

Aeroquip® by Danfoss
Pipe Adapter - Male Branch Tee
Specifications for Variant SKU: 3600X8 Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/2in Female NPTF, 1/2in Female NPTF, 1/2in Male NPTF, Some Ends Match
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130425
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Female Pipe
Thread		 Male Pipe
Thread		 C D L L2 N
3600X2 3600X2Z 1/8" 1/8" 9/16" 0.219" 1.10" 0.55" 0.67"
3600X4 3600X4Z 1/4" 1/4" 11/16" 0.312" 1.56" 0.78" 0.91"
3600X6 3600X6Z 3/8" 3/8" 13/16" 0.438" 1.68" 0.84" 0.97"
3600X8 3600X8Z 1/2" 1/2" 1" 0.562" 2.18" 1.09" 1.25"
3600X12 - 3/4" 3/4" 1-1/4" 0.750" 2.32" 1.16" 1.38"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
