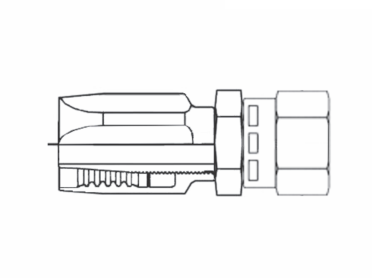

4R5-4FJ Couplamatic Reusable Coupling - R5 Reusables - JIC 37° - Female Swivel - 3/16" Hose ID - 7/16-20 Thread Size

4R5-4FJ by Couplamatic | R5 Reusable Coupling | 3/16" Hose ID x 7/16-20 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

$7.61 - $7.61
$7.61
$10.31
$10.31 - $10.31
$10.31

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - NPTF - JIC 37° - Female Swivel
Specifications for Variant SKU: 4R5-4FJ Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female JIC, 3/16in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    Part Number Hose ID Hose Dash Size Thread Size Tube OD Hose Type
    4R5-4FJ 3/16" -04 7/16-20 1/4" 100R5
    5R5-5FJ 1/4" -05 1/2-20 5/16" 100R5
    6R5-6FJ 5/16" -06 9/16-18 3/8" 100R5
    8R5-8FJ 13/32" -08 3/4-16 1/2" 100R5
    10R5-10FJ 1/2" -10 7/8-14 5/8" 100R5
    12R5-12FJ 5/8" -12 1-1/16-12 3/4" 100R5
    16R5-16FJ 7/8" -16 1-5/16-12 1" 100R5
    20R5-20FJ 1-1/8" -20 1-5/8-12 1-1/4" 100R5
