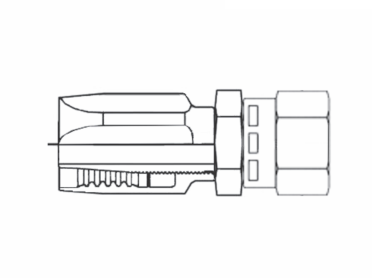

5R5-5FJ Couplamatic Reusable Coupling - R5 Reusables - JIC 37° - Female Swivel - 1/4" Hose ID - 1/2-20 Thread Size

5R5-5FJ by Couplamatic | R5 Reusable Coupling | 1/4" Hose ID x 1/2-20 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Save $8.39 Save $8.39
$20.98
$20.98 - $20.98
$20.98
$12.59
$12.59 - $12.59
$12.59

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - NPTF - JIC 37° - Female Swivel
Specifications for Variant SKU: 5R5-5FJ Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Female JIC, 1/4in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    Part Number Hose ID Hose Dash Size Thread Size Tube OD Hose Type
    4R5-4FJ 3/16" -04 7/16-20 1/4" 100R5
    5R5-5FJ 1/4" -05 1/2-20 5/16" 100R5
    6R5-6FJ 5/16" -06 9/16-18 3/8" 100R5
    8R5-8FJ 13/32" -08 3/4-16 1/2" 100R5
    10R5-10FJ 1/2" -10 7/8-14 5/8" 100R5
    12R5-12FJ 5/8" -12 1-1/16-12 3/4" 100R5
    16R5-16FJ 7/8" -16 1-5/16-12 1" 100R5
    20R5-20FJ 1-1/8" -20 1-5/8-12 1-1/4" 100R5
    Couplamatic Systems Inc

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
