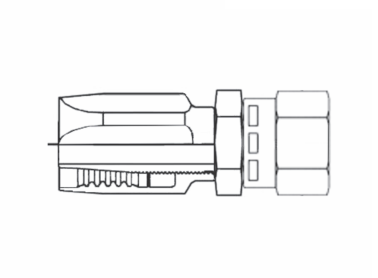

8R5-8FJ Couplamatic Reusable Coupling - R5 Reusables - JIC 37° - Female Swivel - 13/32" Hose ID - 3/4-16 Thread Size

8R5-8FJ by Couplamatic | R5 Reusable Coupling | 13/32" Hose ID x 3/4-16 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Save $9.80 Save $9.80
$24.50
$24.50 - $24.50
$24.50
$14.70
$14.70 - $14.70
$14.70

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - NPTF - JIC 37° - Female Swivel
Specifications for Variant SKU: 8R5-8FJ Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIC, 13/32in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Reusable — Field Attachable

20R5 Reusable Coupling — JIC 37°, Female Swivel, Straight

20R5 is the JIC 37°, Female Swivel, Straight configuration of the Reusable Coupling, terminating 100R1 and 100R2 thin cover hose, or 100R5 textile cover hose, depending on the series.

1

What are the main product features?
  • Non-Mandrel and No Skive
  • Trivalent Zinc Plating
  • Field attachable — assembles with hand tools; no crimp machine needed.
  • Reusable — the coupling can be removed and reinstalled on a new length of hose.
  • Ideal for field repair — keeps equipment running where a crimper is not available.
2

Which sizes are available?
Part Number Hose ID Hose Dash Size Thread Size Tube OD Hose Type
4R5-4FJ 3/16" -04 7/16-20 1/4" 100R5
5R5-5FJ 1/4" -05 1/2-20 5/16" 100R5
6R5-6FJ 5/16" -06 9/16-18 3/8" 100R5
8R5-8FJ 13/32" -08 3/4-16 1/2" 100R5
10R5-10FJ 1/2" -10 7/8-14 5/8" 100R5
12R5-12FJ 5/8" -12 1-1/16-12 3/4" 100R5
16R5-16FJ 7/8" -16 1-5/16-12 1" 100R5
20R5-20FJ 1-1/8" -20 1-5/8-12 1-1/4" 100R5
