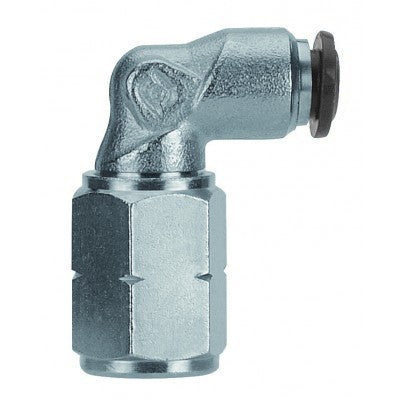

50105N-8-1/4 by AIGNEP | 50N Series | Swivel | 8mm Tube x 1/4" Female BSPP | 90° Elbow | Pack of 10

Save $25.23 Save $25.23
Original price $63.07
Original price $63.07 - Original price $63.07
Original price $63.07
Current price $37.84
$37.84 - $37.84
Current price $37.84

Package Quantity: 10 ea

Specifications for Variant SKU: 50105N-8-1/4 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): 90 Degree
Ends Configuration: 8mm Push-to-Connect, 1/4in Female BSPP
Material(s): Nickel-Plated Brass

Female Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Type: BSPP
Product Number A B L1 L2 CH1 CH2 D
50105N-4-1/8 1/8" 8.5 mm 18 mm 19 mm 9 mm 13 mm 10 mm
50105N-4-1/4 1/4" 11 mm 18 mm 21.5 mm 9 mm 16 mm 10 mm
50105N-6-1/8 1/8" 8.5 mm 21 mm 20.5 mm 11 mm 13 mm 12.5 mm
50105N-6-1/4 1/4" 11 mm 21 mm 23 mm 11 mm 16 mm 12.5 mm
50105N-8-1/8 1/8" 8.5 mm 22.5 mm 22 mm 12 mm 13 mm 14.5 mm
50105N-8-1/4 1/4" 11 mm 22.5 mm 24.5 mm 12 mm 16 mm 14.5 mm
50105N-8-3/8 3/8" 12 mm 22.5 mm 24.5 mm 12 mm 13 mm 14.5 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
