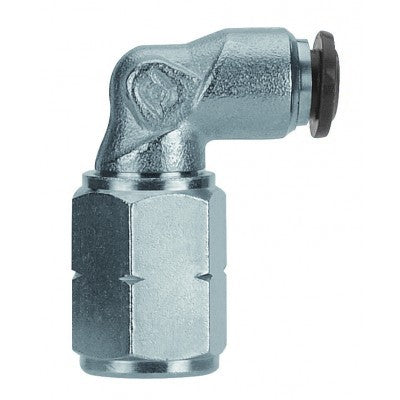

50105N-8-3/8" AIGNEP | 50N Series | Swivel 90° Elbow | 8mm Tube x 3/8" BSPP Female | Pack of 10

50105N-8-3/8 by AIGNEP | 50N Series | Swivel | 8mm Tube x 3/8" BSPP Female | 90° Elbow | Pack of 10

Save $33.25

$83.12

$83.12 - $83.12

$83.12

$49.87

$49.87 - $49.87

$49.87

Package Quantity: 10 ea

Specifications for Variant SKU: 50105N-8-3/8 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	90 Degree
Ends Configuration:	8mm Push-to-Connect, 3/8in Female BSPP
Material(s):	Nickel-Plated Brass

Female Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Type: BSPP

Product Number	A	B	L1	L2	CH1	CH2	D
50105N-4-1/8	1/8"	8.5 mm	18 mm	19 mm	9 mm	13 mm	10 mm
50105N-4-1/4	1/4"	11 mm	18 mm	21.5 mm	9 mm	16 mm	10 mm
50105N-6-1/8	1/8"	8.5 mm	21 mm	20.5 mm	11 mm	13 mm	12.5 mm
50105N-6-1/4	1/4"	11 mm	21 mm	23 mm	11 mm	16 mm	12.5 mm
50105N-8-1/8	1/8"	8.5 mm	22.5 mm	22 mm	12 mm	13 mm	14.5 mm
50105N-8-1/4	1/4"	11 mm	22.5 mm	24.5 mm	12 mm	16 mm	14.5 mm
50105N-8-3/8	3/8"	12 mm	22.5 mm	24.5 mm	12 mm	13 mm	14.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
