55520-6-3/8" AIGNEP | 55/56 Series | Y Double Banjo Body | 6mm Tube x 3/8" Stem | Pack of 10
55520-6-3/8 by AIGNEP | 55/56 Series | Double Banjo Body | 6mm Tube x 3/8" Stem | Y | Pack of 10
55520-6-3/8" AIGNEP | 55/56 Series | Y Double Banjo Body | 6mm Tube x 3/8" Stem | Pack of 10

55520-6-3/8 by AIGNEP | 55/56 Series | Double Banjo Body | 6mm Tube x 3/8" Stem | Y | Pack of 10

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Package Quantity: 10 ea

Specifications for Variant SKU: 55520-6-3/8 AIGNEP | 10 |
Series: 55/56 Series
Shape (Orientation): Banjo
Ends Configuration: 6mm Push-to-Connect, 3/8in Female Banjo
Material(s): Nylon

Double Banjo Body Composite

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

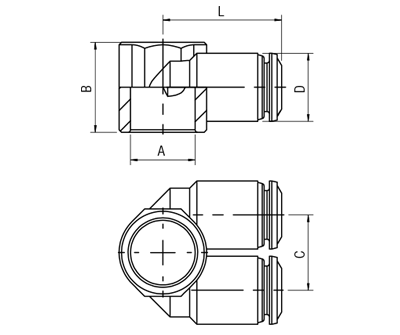

Product Number Tube A B C L D
55520-6-1/8 6 mm 1/8" 16.5 mm 13 mm 21.5 mm 12 mm
55520-6-1/4 6 mm 1/4" 18.5 mm 15.5 mm 24.5 mm 14 mm
55520-6-3/8 6 mm 3/8" 22 mm 13.5 mm 25 mm 12 mm
55520-10-3/8 10 mm 3/8" 22 mm 19 mm 28 mm 17 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
