55520-6-1/4" AIGNEP | 55/56 Series | Y Double Banjo Body | 6mm Tube x 1/4" Stem | Pack of 10

55520-6-1/4 by AIGNEP | 55/56 Series | Double Banjo Body | 6mm Tube x 1/4" Stem | Y | Pack of 10

Save $34.51

$86.28

$86.28 - $86.28

$86.28

$51.77

$51.77 - $51.77

$51.77

Package Quantity: 10 ea

Specifications for Variant SKU: 55520-6-1/4 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Banjo
Ends Configuration:	6mm Push-to-Connect, 1/4in Female Banjo
Material(s):	Nylon

Double Banjo Body Composite

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

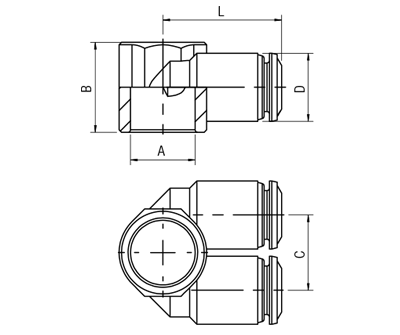

Product Number	Tube	A	B	C	L	D
55520-6-1/8	6 mm	1/8"	16.5 mm	13 mm	21.5 mm	12 mm
55520-6-1/4	6 mm	1/4"	18.5 mm	15.5 mm	24.5 mm	14 mm
55520-6-3/8	6 mm	3/8"	22 mm	13.5 mm	25 mm	12 mm
55520-10-3/8	10 mm	3/8"	22 mm	19 mm	28 mm	17 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
