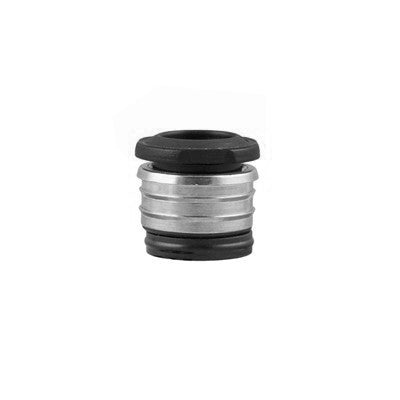

55800N-4 AIGNEP | 50N Series | Push-Fit Cartridge | Composite | 4mm Tube | Pack of 10

55800N-4 by AIGNEP | 50N Series | Push-Fit Cartridge | Composite | 4mm Tube | Pack of 10

$7.48 - $7.48

$7.48

$7.48 - $7.48

$7.48

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 55800N-4 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Straight
Ends Configuration:	4mm Push-to-Connect
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Push-Fit Cartridge Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70

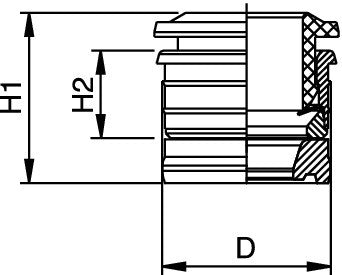

Product Number	Tube	D	H1	H2
55800N-3	3 mm	6.7 mm	9 mm	5 mm
55800N-4	4 mm	8.7 mm	11 mm	5.6 mm
55800N-5	5 mm	9.75 mm	11.8 mm	6.3 mm
55800N-6	6 mm	10.75 mm	12.4 mm	6.9 mm
55800N-8	8 mm	12.7 mm	12.4 mm	6.9 mm
55800N-10	10 mm	15.7 mm	15.7 mm	8.5 mm
55800N-12	12 mm	18.3 mm	17.8 mm	9.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
