55800N-3 AIGNEP | 50N Series | Push-Fit Cartridge | Composite | 3mm Tube | Pack of 10
55800N-3 by AIGNEP | 50N Series | Push-Fit Cartridge | Composite | 3mm Tube | Pack of 10
55800N-3 AIGNEP | 50N Series | Push-Fit Cartridge | Composite | 3mm Tube | Pack of 10

55800N-3 by AIGNEP | 50N Series | Push-Fit Cartridge | Composite | 3mm Tube | Pack of 10

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Package Quantity: 10 ea

Specifications for Variant SKU: 55800N-3 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): Straight
Ends Configuration: 3mm Push-to-Connect
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber

Push-Fit Cartridge Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70

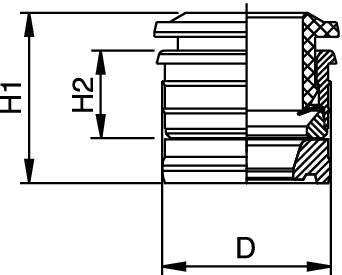

Product Number Tube D H1 H2
55800N-3 3 mm 6.7 mm 9 mm 5 mm
55800N-4 4 mm 8.7 mm 11 mm 5.6 mm
55800N-5 5 mm 9.75 mm 11.8 mm 6.3 mm
55800N-6 6 mm 10.75 mm 12.4 mm 6.9 mm
55800N-8 8 mm 12.7 mm 12.4 mm 6.9 mm
55800N-10 10 mm 15.7 mm 15.7 mm 8.5 mm
55800N-12 12 mm 18.3 mm 17.8 mm 9.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
