55800N-10 AIGNEP | 50N Series | Push-Fit Cartridge | Composite | 10mm Tube | Pack of 10

55800N-10 by AIGNEP | 50N Series | Push-Fit Cartridge | Composite | 10mm Tube | Pack of 10

Save $10.46

$26.15

$26.15 - $26.15

$26.15

$15.69

$15.69 - $15.69

$15.69

Package Quantity: 10 ea

Specifications for Variant SKU: 55800N-10 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Straight
Ends Configuration:	10mm Push-to-Connect
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Push-Fit Cartridge Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70

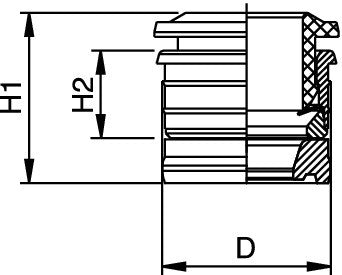

Product Number	Tube	D	H1	H2
55800N-3	3 mm	6.7 mm	9 mm	5 mm
55800N-4	4 mm	8.7 mm	11 mm	5.6 mm
55800N-5	5 mm	9.75 mm	11.8 mm	6.3 mm
55800N-6	6 mm	10.75 mm	12.4 mm	6.9 mm
55800N-8	8 mm	12.7 mm	12.4 mm	6.9 mm
55800N-10	10 mm	15.7 mm	15.7 mm	8.5 mm
55800N-12	12 mm	18.3 mm	17.8 mm	9.5 mm
