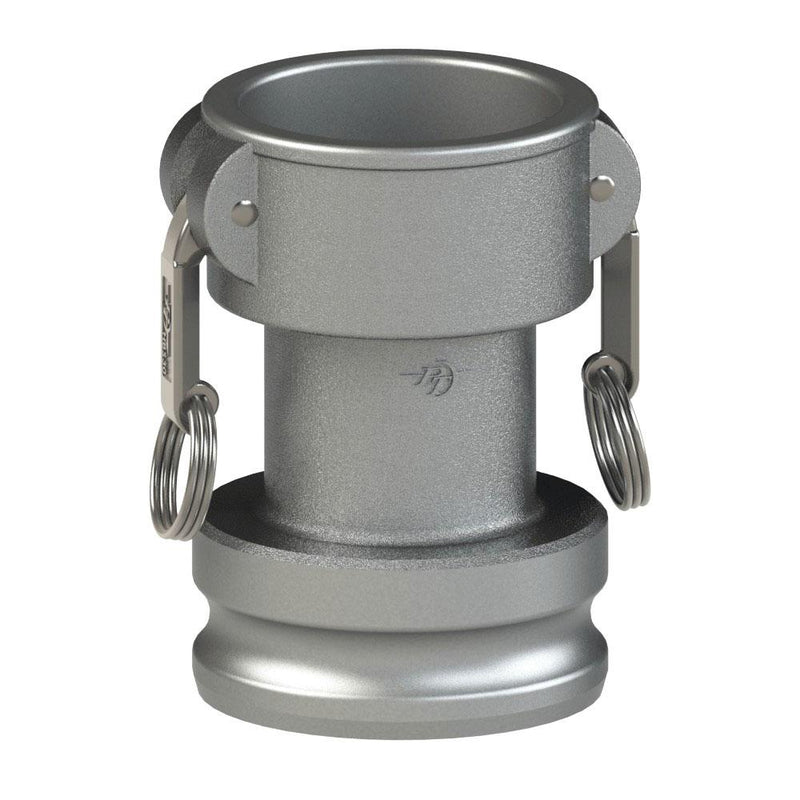

64263020 (30CX20A LONG) by PT-Coupling | Long Reducing Cam & Groove Coupler | Type CXA | 3" Coupler x 2" Adapter | 316 Stainless Steel | Buna-N Seal

Save $116.93 Save $116.93
Original price $314.98
Original price $314.98 - Original price $314.98
Original price $314.98
Current price $198.05
$198.05 - $198.05
Current price $198.05

PT Coupling
Long Reducing Cam & Groove (Camlock) Adapter | Type CXA | Coupler x Adapter | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA


Specifications for Variant SKU: 64263020 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove, 2in Male Cam & Groove
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile
Features & Applications:
  • All Stainless Steel cam and groove fittings are 316 Stainless Steel with 300 series Stainless Steel components.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name
Item # Coupler
Size
Adapter
Size
Max. Allowable
Working Press.
(PSI)*
15CX10A LONG 64261510 1-1/2" 1" 250 PSI
15CX20A LONG 64261520 1-1/2" 2" 250 PSI
20CX12A LONG 64262012 2" 1-1/4" 250 PSI
20CX15A LONG 64262015 2" 1-1/2" 250 PSI
20CX30A LONG 64262030 2" 3" 200 PSI
30CX10A LONG 64263010** 3" 1" 200 PSI
30CX20A LONG 64263020 3" 2" 200 PSI
30CX40A LONG 64263040 3" 4" 150 PSI
40CX30A LONG 64264030 4" 3" 150 PSI
60CX40A LONG 64266040 6" 4" 75 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
