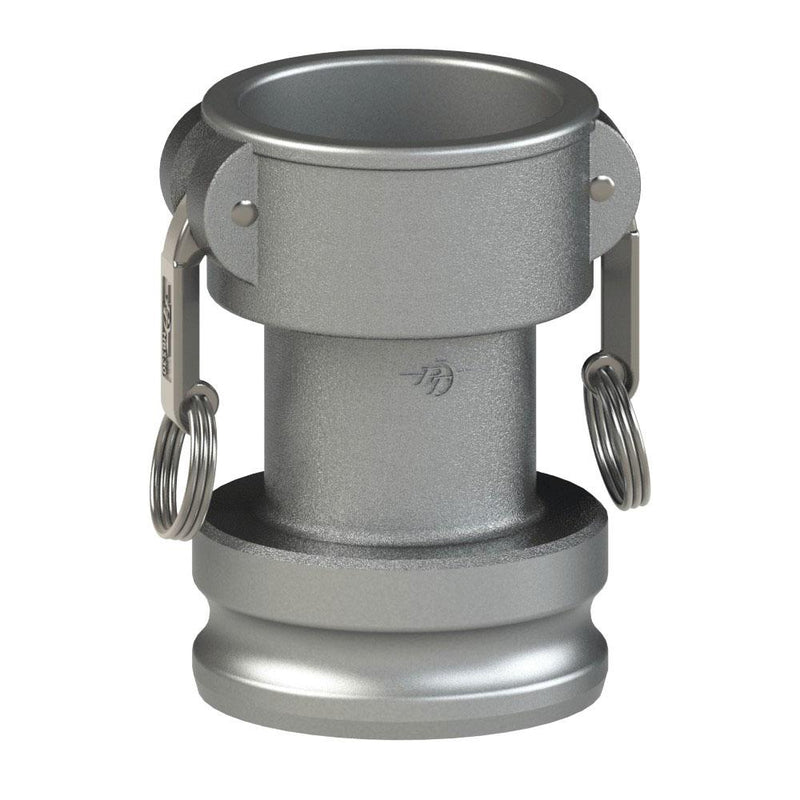

64262030 (20CX30A LONG) by PT-Coupling | Long Reducing Cam & Groove Adapter | Type CXA | 2" Coupler x 3" Adapter | 316 Stainless Steel | Buna-N Seal

64262030 (20CX30A LONG) by PT-Coupling | Long Reducing Cam & Groove Coupler | Type CXA | 2" Coupler x 3" Adapter | 316 Stainless Steel | Buna-N Seal

Save $125.30

$337.55

$337.55 - $337.55

$337.55

$212.25

$212.25 - $212.25

$212.25

PT Coupling
Long Reducing Cam & Groove (Camlock) Adapter | Type CXA | Coupler x Adapter | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64262030 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	2in Female Cam & Groove, 3in Male Cam & Groove
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
All Stainless Steel cam and groove fittings are 316 Stainless Steel with 300 series Stainless Steel components. Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA

Part Name	Item #	Coupler Size	Adapter Size	Max. Allowable Working Press. (PSI)*
15CX10A LONG	64261510	1-1/2"	1"	250 PSI
15CX20A LONG	64261520	1-1/2"	2"	250 PSI
20CX12A LONG	64262012	2"	1-1/4"	250 PSI
20CX15A LONG	64262015	2"	1-1/2"	250 PSI
20CX30A LONG	64262030	2"	3"	200 PSI
30CX10A LONG	64263010**	3"	1"	200 PSI
30CX20A LONG	64263020	3"	2"	200 PSI
30CX40A LONG	64263040	3"	4"	150 PSI
40CX30A LONG	64264030	4"	3"	150 PSI
60CX40A LONG	64266040	6"	4"	75 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
