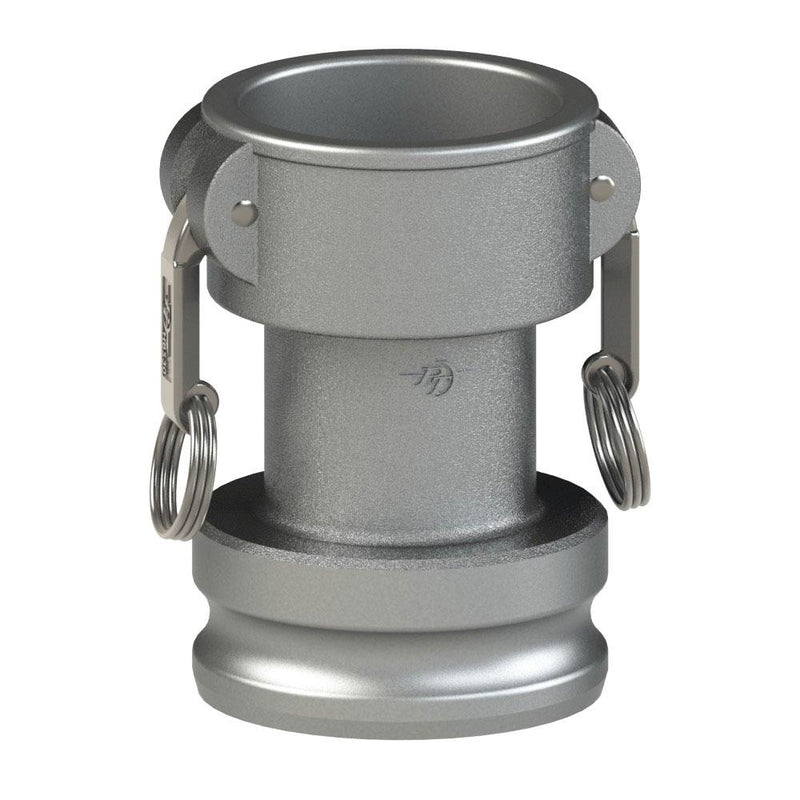

64262012 (20CX12A LONG) by PT-Coupling | Long Reducing Cam & Groove Adapter | Type CXA | 2" Coupler x 1-1/4" Adapter | 316 Stainless Steel | Buna-N Seal

64262012 (20CX12A LONG) by PT-Coupling | Long Reducing Cam & Groove Coupler | Type CXA | 2" Coupler x 1-1/4" Adapter | 316 Stainless Steel | Buna-N Seal

Save $107.87 Save $107.87
$290.60
$290.60 - $290.60
$290.60
$182.73
$182.73 - $182.73
$182.73

PT Coupling
Long Reducing Cam & Groove (Camlock) Adapter | Type CXA | Coupler x Adapter | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64262012 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 2in Female Cam & Groove, 1-1/4in Male Cam & Groove
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile
Features & Applications:
  • All Stainless Steel cam and groove fittings are 316 Stainless Steel with 300 series Stainless Steel components.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Adapter
Size		 Max. Allowable
Working Press.
(PSI)*
15CX10A LONG 64261510 1-1/2" 1" 250 PSI
15CX20A LONG 64261520 1-1/2" 2" 250 PSI
20CX12A LONG 64262012 2" 1-1/4" 250 PSI
20CX15A LONG 64262015 2" 1-1/2" 250 PSI
20CX30A LONG 64262030 2" 3" 200 PSI
30CX10A LONG 64263010** 3" 1" 200 PSI
30CX20A LONG 64263020 3" 2" 200 PSI
30CX40A LONG 64263040 3" 4" 150 PSI
40CX30A LONG 64264030 4" 3" 150 PSI
60CX40A LONG 64266040 6" 4" 75 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
