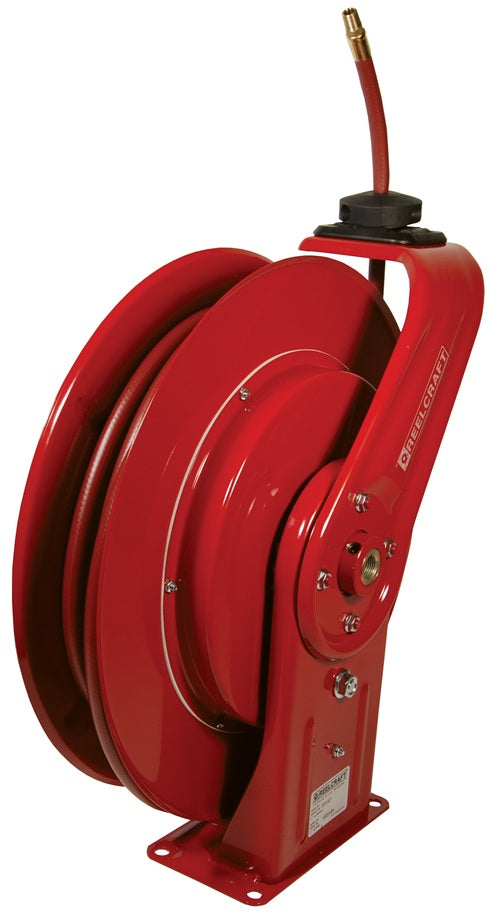

7670LP by Dixon Valve | Reelcraft® 7000 Series | Spring Driven Hose Reel - with Hose | Low Pressure | 3/8" Hose ID | 70ft Hose Length | Steel

7670LP by Dixon Valve | Reelcraft® 7000 Series | Spring Driven Hose Reel - with Hose | Low Pressure | 3/8" Hose ID | 70ft Hose Length | Steel

Save $105.27 Save $105.27
$947.46
$947.46 - $947.46
$947.46
$842.19
$842.19 - $842.19
$842.19

Dixon Valve
Reelcraft® 7000 Series | Spring Driven Hose Reel
Specifications for Variant SKU: 7670LP Dixon
Brand: Reelcraft
Series: 7000 Series
Construction:
  • All steel construction.
Features:
  • LP Low Pressure Reels:
    • - maximum temperature1 50°F (66°C)
    • - reel inlet 1/2" NPTF
    • - PVC hose is standard
  • MP Medium Pressure Reels:
    • - maximum temperature2 10°F (99°C)
    • - reel inlet 1/2" NPTF
    • - SAE 100 R1T 1-wire braid hose available
  • HP High Pressure Reels:
    • - maximum temperature2 10°F (99°C)
    • - reel inlet 1/4" NPTF
    • - SAE 100 R2T 2-wire braid hose available
Reel with Hose
Part Number Hose I.D. Hose Length Service Working
Pressure
PSI
@70°F
7670LP 3/8" 70ft Air / Water 300 PSI
7850LP 1/2" 50ft Air / Water 300 PSI
Reel without Hose
Part Number Hose Capacity Service Working
Pressure
PSI
@70°F
800LP 70ft of 3/8", or 50ft of 1/2" Air / Water 500 PSI
7800MP 50ft of 3/8", or 50ft of 1/2" Oil 3000 PSI
7600HP 50ft of 1/4", or 50ft of 3/8" Grease 5000 PSI
