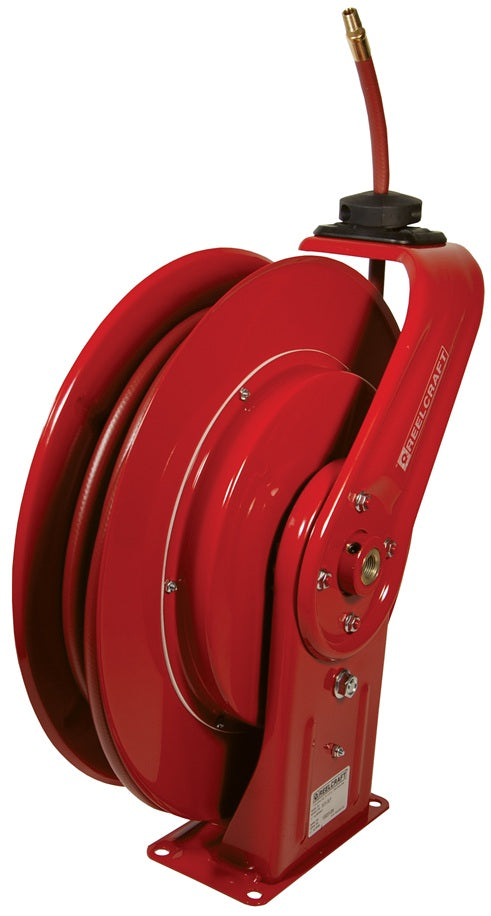

7850LP by Dixon Valve | Reelcraft® 7000 Series | Spring Driven Hose Reel - with Hose | Low Pressure | 1/2" Hose ID | 50ft Hose Length | Steel

Save $521.86

$1,304.65

$1,304.65 - $1,304.65

$1,304.65

$782.79

$782.79 - $782.79

$782.79

Dixon Valve
Reelcraft® 7000 Series | Spring Driven Hose Reel

Specifications for Variant SKU: 7850LP Dixon
Brand:	Reelcraft
Series:	7000 Series

Construction:
All steel construction.
Features:
LP Low Pressure Reels: - maximum temperature1 50°F (66°C) - reel inlet 1/2" NPTF - PVC hose is standard MP Medium Pressure Reels: - maximum temperature2 10°F (99°C) - reel inlet 1/2" NPTF - SAE 100 R1T 1-wire braid hose available HP High Pressure Reels: - maximum temperature2 10°F (99°C) - reel inlet 1/4" NPTF - SAE 100 R2T 2-wire braid hose available

Reel with Hose
Part Number	Hose I.D.	Hose Length	Service	Working Pressure PSI @70°F
7670LP	3/8"	70ft	Air / Water	300 PSI
7850LP	1/2"	50ft	Air / Water	300 PSI

Reel without Hose
Part Number	Hose Capacity	Service	Working Pressure PSI @70°F
800LP	70ft of 3/8", or 50ft of 1/2"	Air / Water	500 PSI
7800MP	50ft of 3/8", or 50ft of 1/2"	Oil	3000 PSI
7600HP	50ft of 1/4", or 50ft of 3/8"	Grease	5000 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
