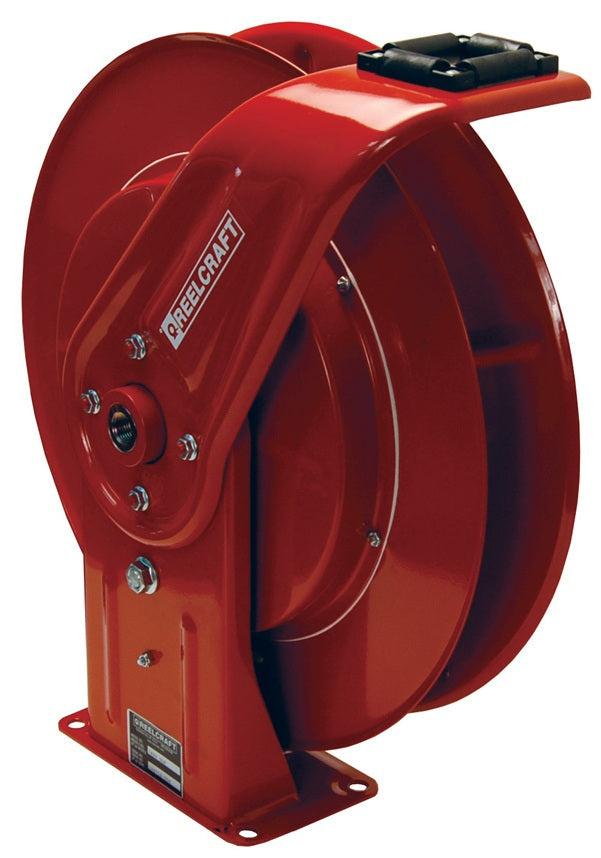

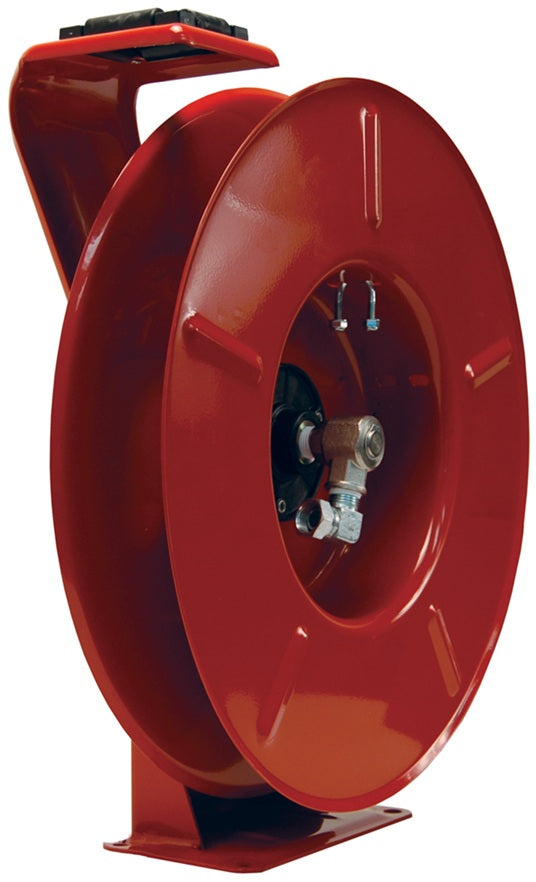

7800MP by Dixon Valve | Reelcraft® 7000 Series | Spring Driven Hose Reel - without Hose | Medium Pressure | 50ft of 3/8", or 50ft of 1/2" Hose Capacity | Steel

Save $68.72

$872.27

$872.27 - $872.27

$872.27

$803.55

$803.55 - $803.55

$803.55

Dixon Valve
Reelcraft® 7000 Series | Spring Driven Hose Reel

Quantity

Specifications for Variant SKU: 7800MP Dixon
Brand:	Reelcraft
Series:	7000 Series

Construction:
All steel construction.
Features:
LP Low Pressure Reels: - maximum temperature1 50°F (66°C) - reel inlet 1/2" NPTF - PVC hose is standard MP Medium Pressure Reels: - maximum temperature2 10°F (99°C) - reel inlet 1/2" NPTF - SAE 100 R1T 1-wire braid hose available HP High Pressure Reels: - maximum temperature2 10°F (99°C) - reel inlet 1/4" NPTF - SAE 100 R2T 2-wire braid hose available

Reel with Hose
Part Number	Hose I.D.	Hose Length	Service	Working Pressure PSI @70°F
7670LP	3/8"	70ft	Air / Water	300 PSI
7850LP	1/2"	50ft	Air / Water	300 PSI

Reel without Hose
Part Number	Hose Capacity	Service	Working Pressure PSI @70°F
800LP	70ft of 3/8", or 50ft of 1/2"	Air / Water	500 PSI
7800MP	50ft of 3/8", or 50ft of 1/2"	Oil	3000 PSI
7600HP	50ft of 1/4", or 50ft of 3/8"	Grease	5000 PSI
