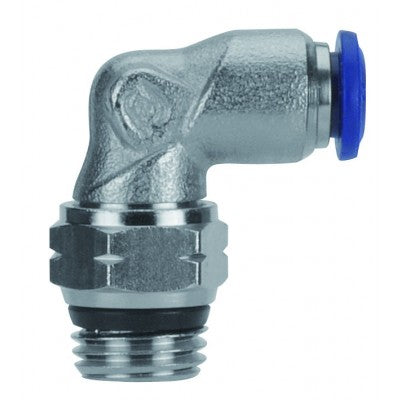

87110-05-06 AIGNEP | 87 / 88 Series | Swivel Male 90° Elbow | 5/16" Tube x 3/8" Swift-Fit Male | Pack of 10

87110-05-06 by AIGNEP | 87 / 88 Series | Swivel | 5/16" Tube x 3/8" Swift-Fit Male | 90° Elbow | Pack of 10

Save $0.33

$32.89

$32.89 - $32.89

$32.89

$32.56

$32.56 - $32.56

$32.56

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 87110-05-06 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/16in Push-to-Connect, 3/8in Male Swift-Fit
Material(s):	Nickel Plated Brass
Seal Material(s):	NBR 70

Swivel Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

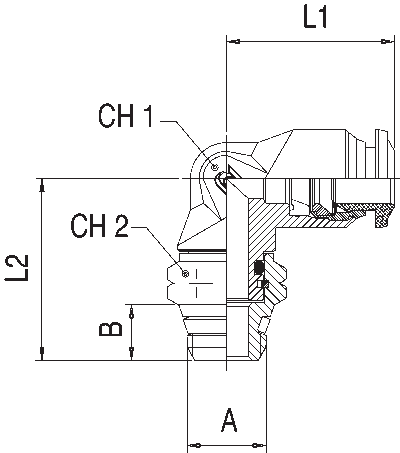

Product Number	Tube	A	B (IN)	B	L1	L2	CH1	CH2
87110-02-02	1/8"	1/8"	0.217"	5.5 mm	16.5 mm	21.5 mm	9 mm	13 mm
87110-02-04	1/8"	1/4"	0.276"	7 mm	17 mm	25.5 mm	9 mm	15 mm
87110-53-02	5/32"	1/8"	0.217"	5.5 mm	17 mm	21.5 mm	9 mm	13 mm
87110-53-04	5/32"	1/4"	0.276"	7 mm	17 mm	25.5 mm	9 mm	15 mm
87110-04-02	1/4"	1/8"	0.217"	5.5 mm	21.5 mm	23.5 mm	11 mm	13 mm
87110-04-04	1/4"	1/4"	0.276"	7 mm	21.5 mm	23.5 mm	11 mm	15 mm
87110-04-06	1/4"	3/8"	0.295"	7.5 mm	21.5 mm	27.5 mm	11 mm	17 mm
87110-05-02	5/16"	1/8"	0.217"	5.5 mm	23 mm	25 mm	13 mm	13 mm
87110-05-04	5/16"	1/4"	0.276"	7 mm	23 mm	27.5 mm	13 mm	15 mm
87110-05-06	5/16"	3/8"	0.295"	7.5 mm	22.5 mm	28 mm	13 mm	17 mm
87110-06-02	3/8"	1/8"	0.217"	5.5 mm	27 mm	27.5 mm	16 mm	13 mm
87110-06-04	3/8"	1/4"	0.276"	7 mm	27 mm	29.5 mm	16 mm	15 mm
87110-06-06	3/8"	3/8"	0.295"	7.5 mm	27 mm	30 mm	16 mm	17 mm
87110-06-08	3/8"	1/2"	0.354"	9 mm	27 mm	33 mm	16 mm	21 mm
87110-08-04	1/2"	1/4"	0.276"	7 mm	31.5 mm	33 mm	19 mm	15 mm
87110-08-06	1/2"	3/8"	0.295"	7.5 mm	31.5 mm	33 mm	19 mm	17 mm
87110-08-08	1/2"	1/2"	0.354"	9 mm	31.5 mm	36 mm	19 mm	21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
