87110-08-04 AIGNEP | 87 / 88 Series | Swivel Male 90° Elbow | 1/2" Tube x 1/4" Swift-Fit Male | Pack of 10
87110-08-04 by AIGNEP | 87 / 88 Series | Swivel | 1/2" Tube x 1/4" Swift-Fit Male | 90° Elbow | Pack of 10
87110-08-04 AIGNEP | 87 / 88 Series | Swivel Male 90° Elbow | 1/2" Tube x 1/4" Swift-Fit Male | Pack of 10

87110-08-04 by AIGNEP | 87 / 88 Series | Swivel | 1/2" Tube x 1/4" Swift-Fit Male | 90° Elbow | Pack of 10

Save $28.35 Save $28.35
$70.88
$70.88 - $70.88
$70.88
$42.53
$42.53 - $42.53
$42.53

Package Quantity: 10 ea

Specifications for Variant SKU: 87110-08-04 AIGNEP | 10 |
Series: 87 / 88 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Push-to-Connect, 1/4in Male Swift-Fit
Material(s): Nickel Plated Brass
Seal Material(s): NBR 70

Swivel Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

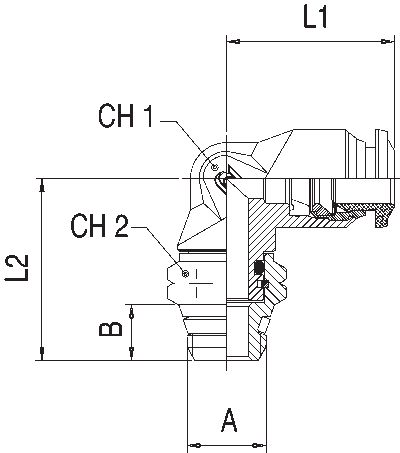

Product Number Tube A B (IN) B L1 L2 CH1 CH2
87110-02-02 1/8" 1/8" 0.217" 5.5 mm 16.5 mm 21.5 mm 9 mm 13 mm
87110-02-04 1/8" 1/4" 0.276" 7 mm 17 mm 25.5 mm 9 mm 15 mm
87110-53-02 5/32" 1/8" 0.217" 5.5 mm 17 mm 21.5 mm 9 mm 13 mm
87110-53-04 5/32" 1/4" 0.276" 7 mm 17 mm 25.5 mm 9 mm 15 mm
87110-04-02 1/4" 1/8" 0.217" 5.5 mm 21.5 mm 23.5 mm 11 mm 13 mm
87110-04-04 1/4" 1/4" 0.276" 7 mm 21.5 mm 23.5 mm 11 mm 15 mm
87110-04-06 1/4" 3/8" 0.295" 7.5 mm 21.5 mm 27.5 mm 11 mm 17 mm
87110-05-02 5/16" 1/8" 0.217" 5.5 mm 23 mm 25 mm 13 mm 13 mm
87110-05-04 5/16" 1/4" 0.276" 7 mm 23 mm 27.5 mm 13 mm 15 mm
87110-05-06 5/16" 3/8" 0.295" 7.5 mm 22.5 mm 28 mm 13 mm 17 mm
87110-06-02 3/8" 1/8" 0.217" 5.5 mm 27 mm 27.5 mm 16 mm 13 mm
87110-06-04 3/8" 1/4" 0.276" 7 mm 27 mm 29.5 mm 16 mm 15 mm
87110-06-06 3/8" 3/8" 0.295" 7.5 mm 27 mm 30 mm 16 mm 17 mm
87110-06-08 3/8" 1/2" 0.354" 9 mm 27 mm 33 mm 16 mm 21 mm
87110-08-04 1/2" 1/4" 0.276" 7 mm 31.5 mm 33 mm 19 mm 15 mm
87110-08-06 1/2" 3/8" 0.295" 7.5 mm 31.5 mm 33 mm 19 mm 17 mm
87110-08-08 1/2" 1/2" 0.354" 9 mm 31.5 mm 36 mm 19 mm 21 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
