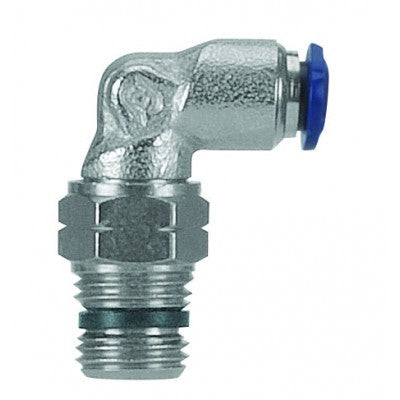

88110-05-06 AIGNEP | 87 / 88 Series | Swivel Male 90° Elbow | 5/16" Tube x 3/8" Male NPTF | Pack of 10

88110-05-06 by AIGNEP | 87 / 88 Series | Swivel | 5/16" Tube x 3/8" Male NPTF | 90° Elbow | Pack of 10

Save $21.71

$54.27

$54.27 - $54.27

$54.27

$32.56

$32.56 - $32.56

$32.56

Package Quantity: 10 ea

Specifications for Variant SKU: 88110-05-06 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/16in Push-to-Connect, 3/8in Male NPTF
Material(s):	Nickel Plated Brass
Seal Material(s):	NBR

Swivel Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: NPTF

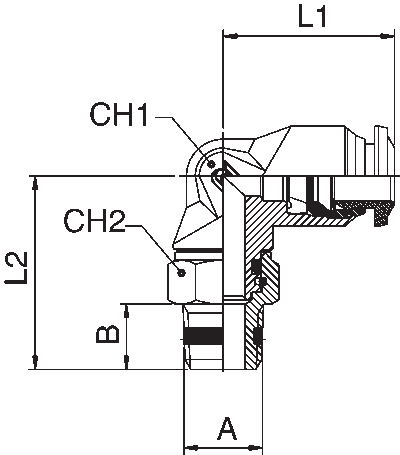

Tube	A NPTF	Thread Type	B (IN)	B	L1	L2	CH1	CH2
88110-02-02	1/8"	1/8"	NPTF	0.335"	8.5 mm	17 mm	23 mm	9 mm	13 mm
88110-02-04	1/8"	1/4"	NPTF	0.512"	13 mm	17 mm	28.5 mm	9 mm	15 mm
88110-53-02	5/32"	1/8"	NPTF	0.335"	8.5 mm	17 mm	23 mm	9 mm	13 mm
88110-53-04	5/32"	1/4"	NPTF	0.512"	13 mm	17 mm	30 mm	9 mm	15 mm
88110-04-02	1/4"	1/8"	NPTF	0.335"	8.5 mm	21 mm	26 mm	11 mm	13 mm
88110-04-04	1/4"	1/4"	NPTF	0.512"	13 mm	21 mm	31 mm	11 mm	15 mm
88110-04-06	1/4"	3/8"	NPTF	0.512"	13 mm	21 mm	32.5 mm	11 mm	18 mm
88110-05-02	5/16"	1/8"	NPTF	0.335"	8.5 mm	22.5 mm	26.5 mm	13 mm	13 mm
88110-05-04	5/16"	1/4"	NPTF	0.512"	13 mm	22.5 mm	32 mm	13 mm	15 mm
88110-05-06	5/16"	3/8"	NPTF	0.512"	13 mm	22.5 mm	32.5 mm	13 mm	18 mm
88110-06-02	3/8"	1/8"	NPTF	0.335"	8.5 mm	26.5 mm	30 mm	16 mm	13 mm
88110-06-04	3/8"	1/4"	NPTF	0.512"	13 mm	28 mm	35 mm	16 mm	15 mm
88110-06-06	3/8"	3/8"	NPTF	0.512"	13 mm	26 mm	34.5 mm	16 mm	18 mm
88110-06-08	3/8"	1/2"	NPTF	0.669"	17 mm	26.5 mm	41 mm	16 mm	22 mm
88110-08-04	1/2"	1/4"	NPTF	0.512"	13 mm	30.5 mm	39.5 mm	19 mm	15 mm
88110-08-06	1/2"	3/8"	NPTF	0.512"	13 mm	30.5 mm	37.5 mm	19 mm	18 mm
88110-08-08	1/2"	1/2"	NPTF	0.669"	17 mm	30.5 mm	44 mm	19 mm	22 mm
