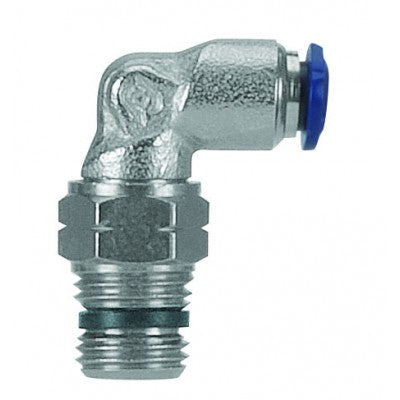

88110-08-04 AIGNEP | 87 / 88 Series | Swivel Male 90° Elbow | 1/2" Tube x 1/4" Male NPTF | Pack of 10
88110-08-04 by AIGNEP | 87 / 88 Series | Swivel | 1/2" Tube x 1/4" Male NPTF | 90° Elbow | Pack of 10
88110-08-04 AIGNEP | 87 / 88 Series | Swivel Male 90° Elbow | 1/2" Tube x 1/4" Male NPTF | Pack of 10

88110-08-04 by AIGNEP | 87 / 88 Series | Swivel | 1/2" Tube x 1/4" Male NPTF | 90° Elbow | Pack of 10

Save $0.44 Save $0.44
$42.97
$42.97 - $42.97
$42.97
$42.53
$42.53 - $42.53
$42.53

Package Quantity: 10 ea

Specifications for Variant SKU: 88110-08-04 AIGNEP | 10 |
Series: 87 / 88 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Push-to-Connect, 1/4in Male NPTF
Material(s): Nickel Plated Brass
Seal Material(s): NBR

Swivel Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: NPTF

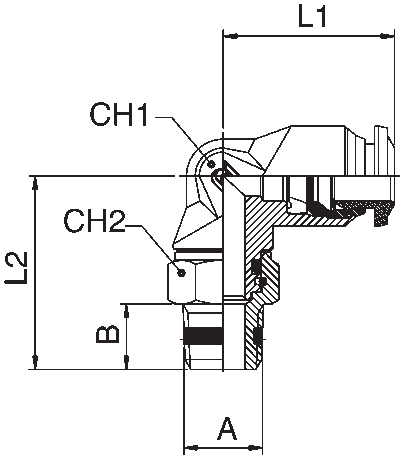

Product Number Tube A NPTF Thread Type B (IN) B L1 L2 CH1 CH2
88110-02-02 1/8" 1/8" NPTF 0.335" 8.5 mm 17 mm 23 mm 9 mm 13 mm
88110-02-04 1/8" 1/4" NPTF 0.512" 13 mm 17 mm 28.5 mm 9 mm 15 mm
88110-53-02 5/32" 1/8" NPTF 0.335" 8.5 mm 17 mm 23 mm 9 mm 13 mm
88110-53-04 5/32" 1/4" NPTF 0.512" 13 mm 17 mm 30 mm 9 mm 15 mm
88110-04-02 1/4" 1/8" NPTF 0.335" 8.5 mm 21 mm 26 mm 11 mm 13 mm
88110-04-04 1/4" 1/4" NPTF 0.512" 13 mm 21 mm 31 mm 11 mm 15 mm
88110-04-06 1/4" 3/8" NPTF 0.512" 13 mm 21 mm 32.5 mm 11 mm 18 mm
88110-05-02 5/16" 1/8" NPTF 0.335" 8.5 mm 22.5 mm 26.5 mm 13 mm 13 mm
88110-05-04 5/16" 1/4" NPTF 0.512" 13 mm 22.5 mm 32 mm 13 mm 15 mm
88110-05-06 5/16" 3/8" NPTF 0.512" 13 mm 22.5 mm 32.5 mm 13 mm 18 mm
88110-06-02 3/8" 1/8" NPTF 0.335" 8.5 mm 26.5 mm 30 mm 16 mm 13 mm
88110-06-04 3/8" 1/4" NPTF 0.512" 13 mm 28 mm 35 mm 16 mm 15 mm
88110-06-06 3/8" 3/8" NPTF 0.512" 13 mm 26 mm 34.5 mm 16 mm 18 mm
88110-06-08 3/8" 1/2" NPTF 0.669" 17 mm 26.5 mm 41 mm 16 mm 22 mm
88110-08-04 1/2" 1/4" NPTF 0.512" 13 mm 30.5 mm 39.5 mm 19 mm 15 mm
88110-08-06 1/2" 3/8" NPTF 0.512" 13 mm 30.5 mm 37.5 mm 19 mm 18 mm
88110-08-08 1/2" 1/2" NPTF 0.669" 17 mm 30.5 mm 44 mm 19 mm 22 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
