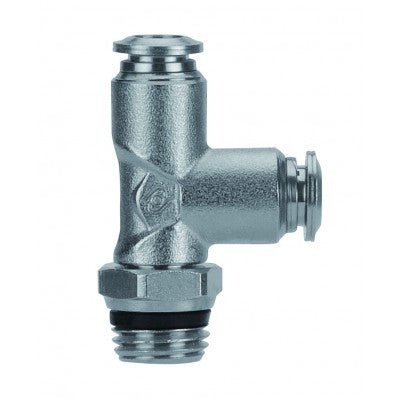

89222-05-06 AIGNEP | 89 Series | Swivel Male Run Tee Metal Release Collet | 5/16" (8mm) Tube x 3/8" Swift-Fit Male | Pack of 10

89222-05-06 by AIGNEP | 89 Series | Swivel Male Run Metal Release Collet | 5/16" (8mm) Tube x 3/8" Swift-Fit Male | Tee | Pack of 10

Save $0.53

$52.30

$52.30 - $52.30

$52.30

$51.77

$51.77 - $51.77

$51.77

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 89222-05-06 AIGNEP \| 10 \|
Series:	89 Series
Shape (Orientation):	Tee
Ends Configuration:	5/16in Push-to-Connect, 3/8in Male Swift-Fit, 5/16in Push-to-Connect, Some Ends Match
Material(s):	Nickel Plated Brass
Seal Material(s):	NBR 70

Swivel Run Tee Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

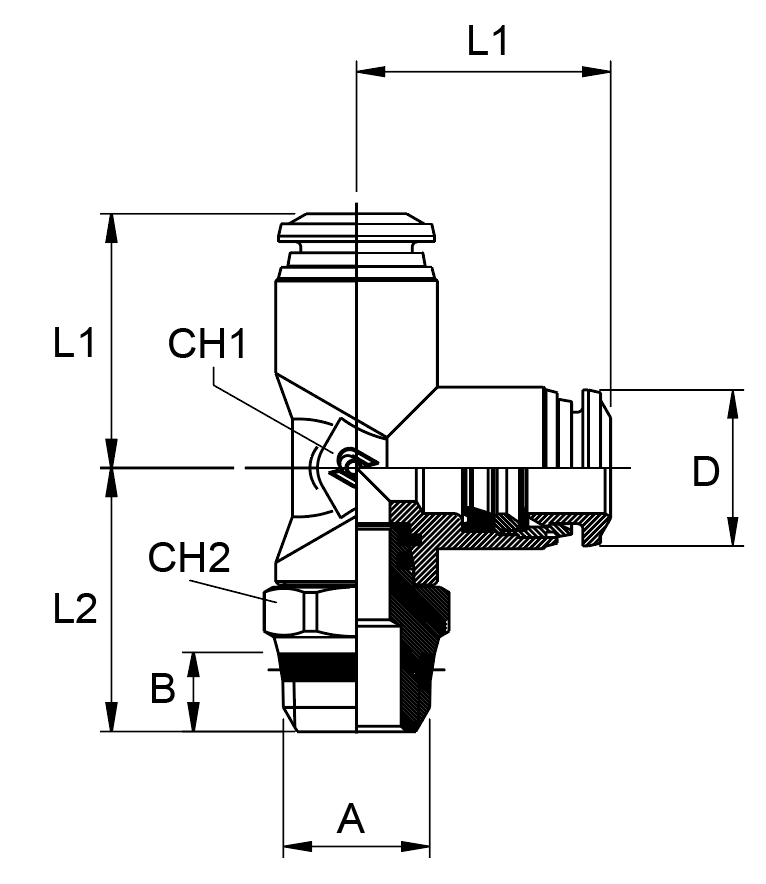

Product Number	Tube	A	B (IN)	B	L1	L2	CH1	CH2	D
89222-02-32	1/8"	10-32	0.157"	4 mm	16.5 mm	17 mm	9 mm	8 mm	10 mm
89222-02-02	1/8"	1/8"	0.216"	5.5 mm	16.5 mm	18.5 mm	9 mm	13 mm	10 mm
89222-02-04	1/8"	1/4"	0.334"	7 mm	16.5 mm	20.5 mm	9 mm	15 mm	10 mm
89222-53-32	5/32"	10-32	0.157"	4 mm	17 mm	18 mm	9 mm	8 mm	10 mm
89222-53-02	5/32"	1/8"	0.216"	5.5 mm	16.5 mm	18.5 mm	9 mm	13 mm	10 mm
89222-53-04	5/32"	1/4"	0.275"	7 mm	16.5 mm	20.5 mm	9 mm	15 mm	10 mm
89222-04-32	1/4"	10-32	0.157"	4 mm	21 mm	19.5 mm	11 mm	11 mm	12.5 mm
89222-04-02	1/4"	1/8"	0.216"	5.5 mm	21.5 mm	20 mm	11 mm	13 mm	12.5 mm
89222-04-04	1/4"	1/4"	0.275"	7 mm	21.5 mm	21.5 mm	11 mm	15 mm	12.5 mm
89222-04-06	1/4"	3/8"	0.295"	7.5 mm	21.5 mm	22 mm	11 mm	17 mm	12.5 mm
89222-05-02	5/16"	1/8"	0.216"	5.5 mm	22.5 mm	24 mm	13 mm	13 mm	14.5 mm
89222-05-04	5/16"	1/4"	0.275"	7 mm	22.5 mm	24 mm	13 mm	15 mm	14.5 mm
89222-05-06	5/16"	3/8"	0.295"	7.5 mm	22.5 mm	27 mm	13 mm	17 mm	14.5 mm
89222-06-02	3/8"	1/8"	0.275"	7 mm	27 mm	26 mm	14 mm	14 mm	17.5 mm
89222-06-04	3/8"	1/4"	0.275"	7 mm	27 mm	26.5 mm	14 mm	16 mm	17.5 mm
89222-06-06	3/8"	3/8"	0.295"	7.5 mm	27 mm	27 mm	14 mm	17 mm	17.5 mm
89222-06-08	3/8"	1/2"	0.354"	9 mm	27 mm	29 mm	14 mm	21 mm	17.5 mm
89222-08-04	1/2"	1/4"	0.275"	7 mm	31.5 mm	31.5 mm	16 mm	15 mm	21.5 mm
89222-08-06	1/2"	3/8"	0.295"	7.5 mm	31.5 mm	31.5 mm	16 mm	15 mm	21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
