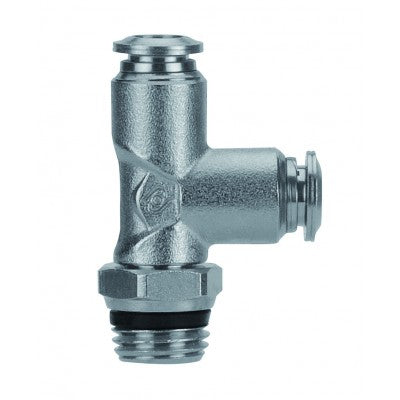

89222-06-02 AIGNEP | 89 Series | Swivel Male Run Tee Metal Release Collet | 3/8" Tube x 1/8" Swift-Fit Male | Pack of 10
89222-06-02 by AIGNEP | 89 Series | Swivel Male Run Metal Release Collet | 3/8" Tube x 1/8" Swift-Fit Male | Tee | Pack of 10
89222-06-02 AIGNEP | 89 Series | Swivel Male Run Tee Metal Release Collet | 3/8" Tube x 1/8" Swift-Fit Male | Pack of 10

89222-06-02 by AIGNEP | 89 Series | Swivel Male Run Metal Release Collet | 3/8" Tube x 1/8" Swift-Fit Male | Tee | Pack of 10

Save $35.20 Save $35.20
$88.00
$88.00 - $88.00
$88.00
$52.80
$52.80 - $52.80
$52.80

Package Quantity: 10 ea

Specifications for Variant SKU: 89222-06-02 AIGNEP | 10 |
Series: 89 Series
Shape (Orientation): Tee
Ends Configuration: 3/8in Push-to-Connect, 1/8in Male Swift-Fit, 3/8in Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Seal Material(s): NBR 70

Swivel Run Tee Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

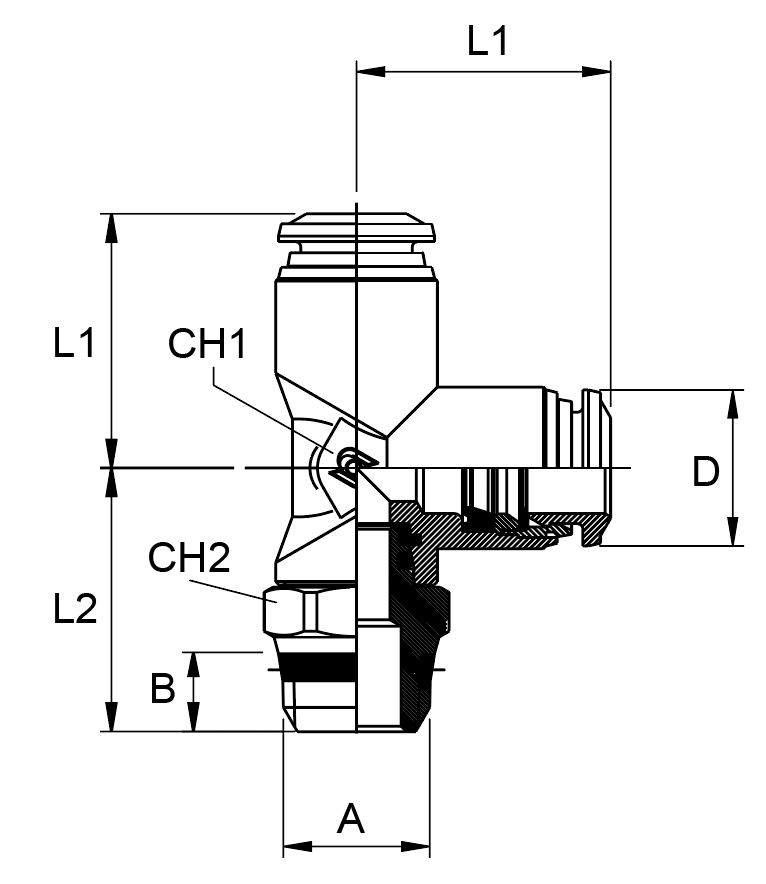

Product Number Tube A B (IN) B L1 L2 CH1 CH2 D
89222-02-32 1/8" 10-32 0.157" 4 mm 16.5 mm 17 mm 9 mm 8 mm 10 mm
89222-02-02 1/8" 1/8" 0.216" 5.5 mm 16.5 mm 18.5 mm 9 mm 13 mm 10 mm
89222-02-04 1/8" 1/4" 0.334" 7 mm 16.5 mm 20.5 mm 9 mm 15 mm 10 mm
89222-53-32 5/32" 10-32 0.157" 4 mm 17 mm 18 mm 9 mm 8 mm 10 mm
89222-53-02 5/32" 1/8" 0.216" 5.5 mm 16.5 mm 18.5 mm 9 mm 13 mm 10 mm
89222-53-04 5/32" 1/4" 0.275" 7 mm 16.5 mm 20.5 mm 9 mm 15 mm 10 mm
89222-04-32 1/4" 10-32 0.157" 4 mm 21 mm 19.5 mm 11 mm 11 mm 12.5 mm
89222-04-02 1/4" 1/8" 0.216" 5.5 mm 21.5 mm 20 mm 11 mm 13 mm 12.5 mm
89222-04-04 1/4" 1/4" 0.275" 7 mm 21.5 mm 21.5 mm 11 mm 15 mm 12.5 mm
89222-04-06 1/4" 3/8" 0.295" 7.5 mm 21.5 mm 22 mm 11 mm 17 mm 12.5 mm
89222-05-02 5/16" 1/8" 0.216" 5.5 mm 22.5 mm 24 mm 13 mm 13 mm 14.5 mm
89222-05-04 5/16" 1/4" 0.275" 7 mm 22.5 mm 24 mm 13 mm 15 mm 14.5 mm
89222-05-06 5/16" 3/8" 0.295" 7.5 mm 22.5 mm 27 mm 13 mm 17 mm 14.5 mm
89222-06-02 3/8" 1/8" 0.275" 7 mm 27 mm 26 mm 14 mm 14 mm 17.5 mm
89222-06-04 3/8" 1/4" 0.275" 7 mm 27 mm 26.5 mm 14 mm 16 mm 17.5 mm
89222-06-06 3/8" 3/8" 0.295" 7.5 mm 27 mm 27 mm 14 mm 17 mm 17.5 mm
89222-06-08 3/8" 1/2" 0.354" 9 mm 27 mm 29 mm 14 mm 21 mm 17.5 mm
89222-08-04 1/2" 1/4" 0.275" 7 mm 31.5 mm 31.5 mm 16 mm 15 mm 21.5 mm
89222-08-06 1/2" 3/8" 0.295" 7.5 mm 31.5 mm 31.5 mm 16 mm 15 mm 21.5 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
